OP980
SENSOR PHOTODIODE 890NM PLCC-2Manufacturer: TT Electronics/Optek Technology
Categories: Photodiodes
Quality Control: Learn More

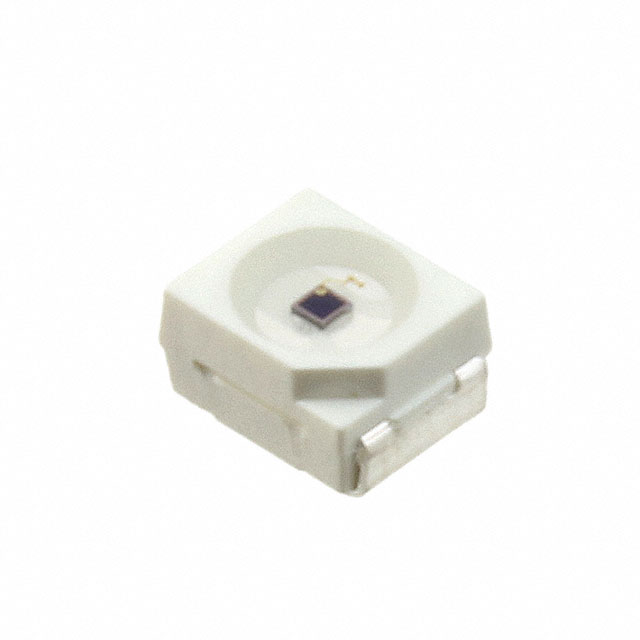

TT Electronics/Optek Technology OP980 is a high-speed photodiode designed for surface mount applications. This pin-type photodiode exhibits a peak sensitivity at 890nm with a spectral range extending from 400nm to 1100nm. It features a rapid response time of 50ns and a wide viewing angle of 100°, making it suitable for demanding optical sensing tasks. The OP980 operates with a maximum reverse voltage of 60V and typically draws only 60nA of dark current. Packaged in Tape & Reel (TR), this component is utilized in industrial automation, medical equipment, and optical networking systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Wavelength | 890nm |
| Mounting Type | Surface Mount |
| Diode Type | Pin |
| Operating Temperature | -25°C ~ 85°C |
| Response Time | 50ns |
| Viewing Angle | 100° |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | - |
| Current - Dark (Typ) | 60nA |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
