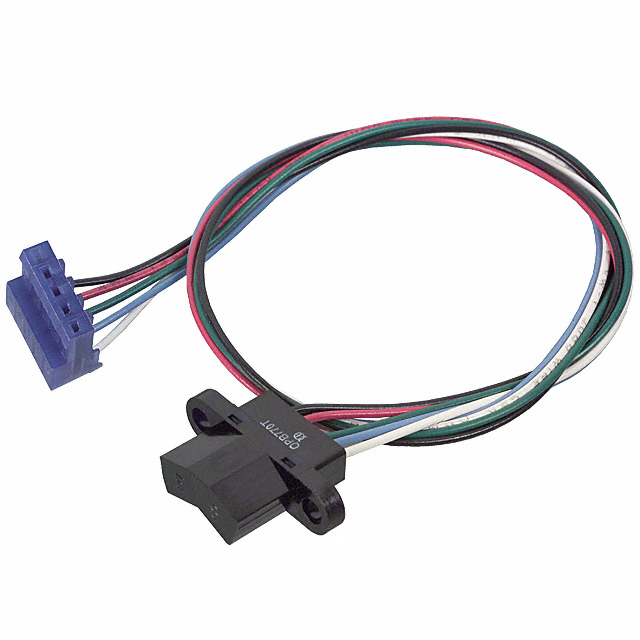

OPB770T
SENSOR REFLCTV 5.58MM TOTEM POLEManufacturer: TT Electronics/Optek Technology
Categories: Logic Output
Quality Control: Learn More
The TT Electronics/Optek Technology OPB770T, a Photologic® series reflective optical sensor, offers precise object detection within a sensing range of 2.03mm to 5.59mm. This component features a totem pole output configuration and is designed for through-hole mounting. It operates with a supply voltage between 4.75V and 5.25V, drawing a maximum supply current of 10mA. The sensor is optimized for detecting reflective surfaces, specifically verified for use with Kodak® Paper, and utilizes infrared light for sensing. This module is commonly employed in industrial automation, consumer electronics, and office equipment applications where reliable, non-contact object presence or absence detection is critical. The OPB770T is supplied in bulk packaging.
Additional Information
Series: Photologic®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Sensing Distance | 0.080"" ~ 0.220"" (2.03mm ~ 5.59mm) |
| Sensing Method | Reflective |
| Mounting Type | Through Hole |
| Output Configuration | Totem Pole |
| Voltage - Supply | 4.75V ~ 5.25V |
| Sensing Object | Kodak® Paper |
| Sensing Light | Infrared |
| Current - Supply | 10 mA |
Request a Quote
