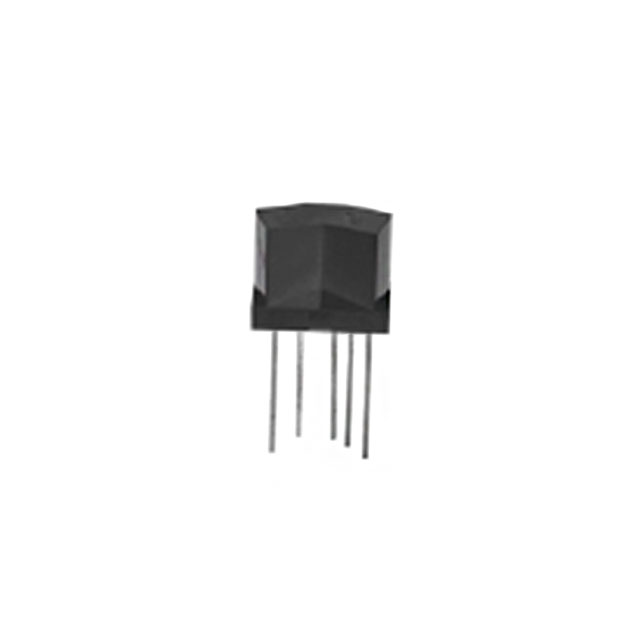

OPB763N
SENSOR REFLECTIVE 5.58MM NPNManufacturer: TT Electronics/Optek Technology
Categories: Logic Output
Quality Control: Learn More
TT Electronics/Optek Technology OPB763N is a Photologic® series reflective optical sensor with an NPN open collector/dark-ON output configuration. This module-packaged component, designed for through-hole mounting, operates with a supply voltage range of 4.75V to 5.25V and a typical supply current of 10 mA. The OPB763N is optimized for detecting reflective surfaces within a sensing distance of 0.080 to 0.220 inches (2.03mm to 5.59mm), specifically calibrated for materials like Kodak® paper, utilizing infrared light for detection. This device finds application in various industrial automation, consumer electronics, and motion control systems where precise object presence detection is critical.
Additional Information
Series: Photologic®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Sensing Distance | 0.080"" ~ 0.220"" (2.03mm ~ 5.59mm) |
| Sensing Method | Reflective |
| Mounting Type | Through Hole |
| Output Configuration | NPN - Open Collector/Dark-ON |
| Voltage - Supply | 4.75V ~ 5.25V |
| Sensing Object | Kodak® Paper |
| Sensing Light | Infrared |
| Current - Supply | 10 mA |
