OPB716
SENSOR REFLECTVE 12.7MM NPN OPENManufacturer: TT Electronics/Optek Technology
Categories: Logic Output
Quality Control: Learn More

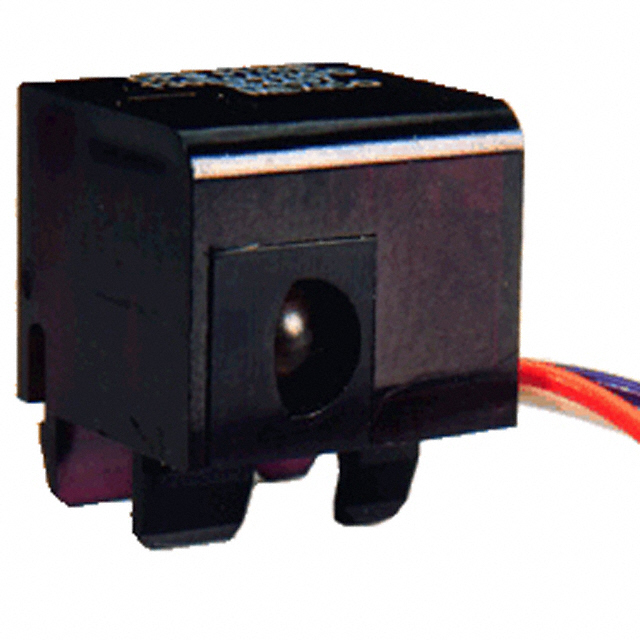

The TT Electronics/Optek Technology OPB716 is a Photologic® series reflective optical sensor with a sensing distance of 0.500" (12.70mm), designed for detecting reflective surfaces such as Kodak® Paper. This module-packaged component features an NPN open collector output configuration and operates with a supply voltage range of 4.75V to 5.25V, drawing a maximum supply current of 50 mA. The sensor utilizes infrared light for its sensing method. It is suitable for chassis mount applications and commonly found in industrial automation, office equipment, and security systems requiring precise object detection and position sensing.
Additional Information
Series: Photologic®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Sensing Distance | 0.500"" (12.70mm) |
| Sensing Method | Reflective |
| Mounting Type | Chassis Mount |
| Output Configuration | NPN - Open Collector |
| Voltage - Supply | 4.75V ~ 5.25V |
| Sensing Object | Kodak® Paper |
| Sensing Light | Infrared |
| Current - Supply | 50 mA |
