OVTL09LGAW
LED LEDNIUM WHITE SMDManufacturer: TT Electronics/Optek Technology
Categories: LED White Lighting
Quality Control: Learn More

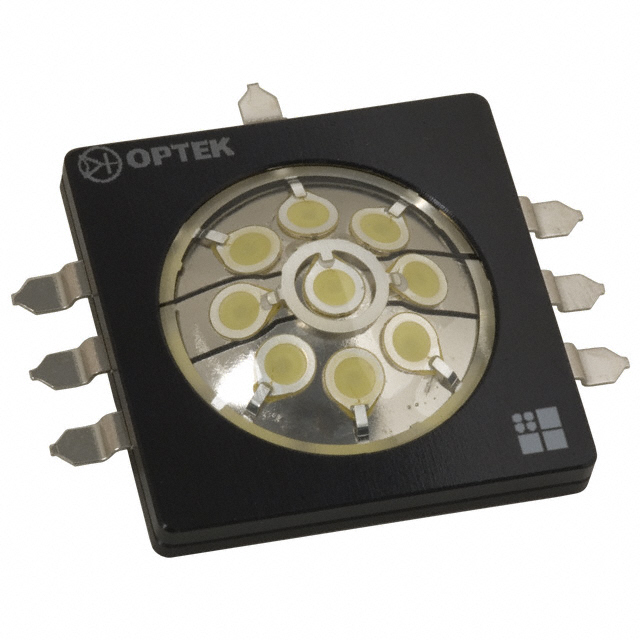

TT Electronics/Optek Technology presents the OVTL09LGAW, a high-power white LED from the Lednium series. This SMD component features a gull-wing leaded package (8-SMD, 7 leads) designed for surface mounting. It operates with a typical forward voltage of 10.2V and a test current of 1.05A, delivering 250 lumens with a luminous efficacy of 23 lm/W. The OVTL09LGAW offers a wide 120° viewing angle and is rated for a maximum continuous current of 3A. Its dimensions are 1.148" L x 0.846" W (29.15mm x 21.50mm) with a seated height of 0.341" (8.65mm). This LED is suitable for demanding illumination applications in sectors such as automotive, industrial lighting, and general lighting systems. The OVTL09LGAW is supplied in trays.
Additional Information
Series: LedniumRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Color | White |
| Size / Dimension | 1.148"" L x 0.846"" W (29.15mm x 21.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 10.2V |
| Current - Test | 1.05A |
| Viewing Angle | 120° |
| Current - Max | 3A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 23 lm/W |
| Height - Seated (Max) | 0.341"" (8.65mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 250lm (Typ) |
| Flux @ 85°C, Current - Test | - |
