OVTL09LG3W
LED LEDNIUM COOL WHT 7000K SMDManufacturer: TT Electronics/Optek Technology
Categories: LED White Lighting
Quality Control: Learn More

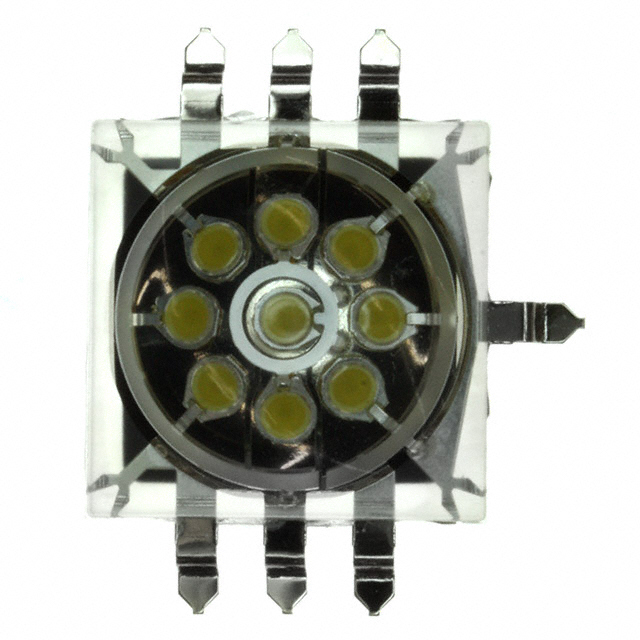

TT Electronics/Optek Technology Lednium series OVTL09LG3W is a surface-mount LED component designed for high-output cool white illumination. This device features a typical forward voltage of 10.2V and a maximum forward current of 1.05A, delivering a typical luminous flux of 565 lumens at the test current. Its correlated color temperature (CCT) is specified as 7000K, with a range of 6400K to 7600K, and it exhibits a wide 120° viewing angle. The OVTL09LG3W is housed in an 8-SMD package with 7 gull-wing leads, measuring 1.148" L x 0.846" W (29.15mm x 21.50mm) and a seated height of 0.341" (8.65mm). This component is suitable for applications in general lighting, architectural lighting, and industrial illumination.
Additional Information
Series: LedniumRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Color | White, Cool |
| Size / Dimension | 1.148"" L x 0.846"" W (29.15mm x 21.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 10.2V |
| Current - Test | 1.05A |
| Viewing Angle | 120° |
| Current - Max | 1.05A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 53 lm/W |
| Height - Seated (Max) | 0.341"" (8.65mm) |
| CCT (K) | 7000K (6400K ~ 7600K) |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 565lm (Typ) |
| Flux @ 85°C, Current - Test | - |
