OVSPW1BCR44
LED WHITE WTR CLEAR 60DEG SMDManufacturer: TT Electronics/Optek Technology
Categories: LED White Lighting
Quality Control: Learn More

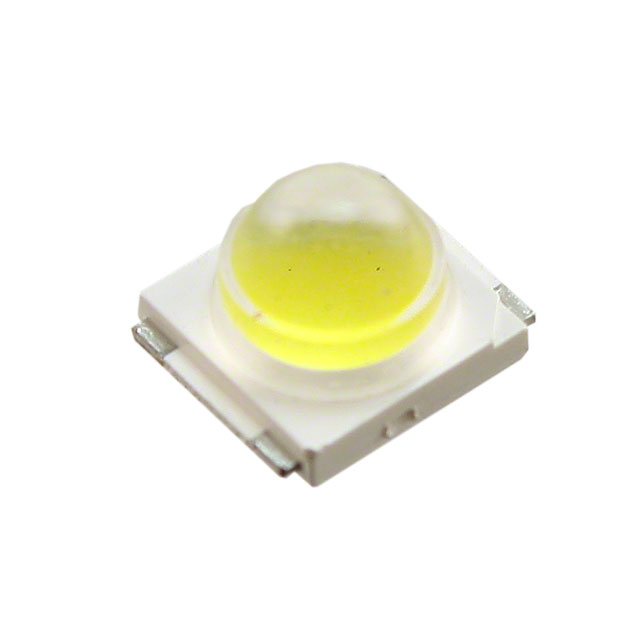

TT Electronics/Optek Technology OVSPW1BCR44 is a surface-mount white LED designed for illumination applications. This component features a 70° viewing angle and a forward voltage of 3.5V at a maximum current of 350mA. Delivering 62 lumens typically at the test current, it offers 51 lumens per watt efficiency. The LED is housed in a 2828 (7070 Metric) package, measuring 0.276 inches by 0.236 inches (7.00mm x 6.00mm), with a seated height of 0.063 inches (1.60mm). The OVSPW1BCR44 is supplied on tape and reel for automated assembly. This component is suitable for general lighting, automotive, and industrial applications requiring reliable white LED illumination.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | White |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Current - Test | 350mA |
| Viewing Angle | 70° |
| Current - Max | 350mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 51 lm/W |
| Height - Seated (Max) | 0.063"" (1.60mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 62lm (Typ) |
| Flux @ 85°C, Current - Test | - |
