OVSPW1BCR4
LED WHITE SMDManufacturer: TT Electronics/Optek Technology
Categories: LED White Lighting
Quality Control: Learn More

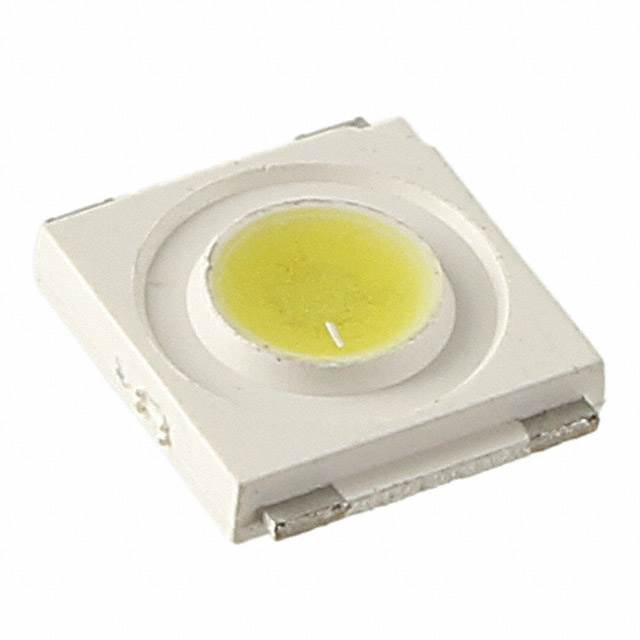

TT Electronics/Optek Technology OVSPW1BCR4 is a white surface mount LED designed for general illumination applications. This component features a typical forward voltage of 3.5V and can operate at a maximum current of 350mA. The OVSPW1BCR4 delivers a luminous flux of 90 lumens at 350mA test current, with a lumens per watt rating of 73 lm/W. Its wide 120° viewing angle ensures broad light distribution. The LED is housed in a 2828 (7070 Metric) SMD package, measuring 0.276" L x 0.236" W (7.00mm x 6.00mm) with a maximum seated height of 0.063" (1.60mm). This component is supplied on a tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | White |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 350mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Height - Seated (Max) | 0.063"" (1.60mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 90lm (67lm ~ 114lm) |
| Flux @ 85°C, Current - Test | - |
