OVS5WBCR4
LED WHITE WATER CLEAR 6MM 4SMDManufacturer: TT Electronics/Optek Technology
Categories: LED White Lighting
Quality Control: Learn More

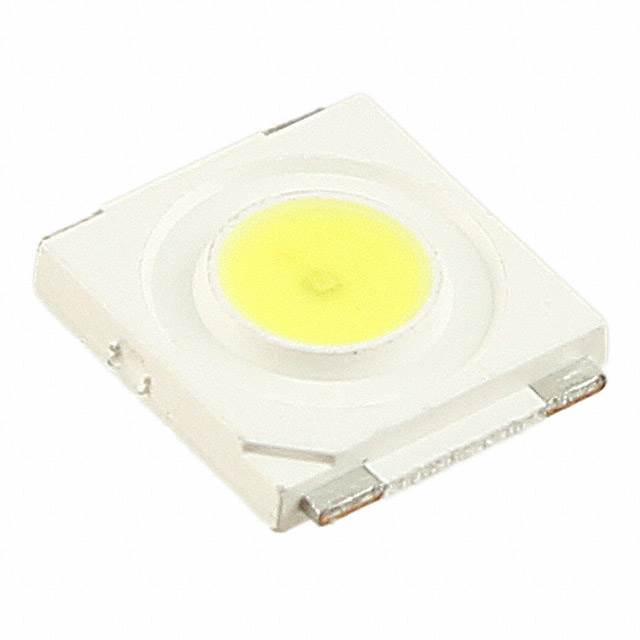

TT Electronics/Optek Technology OVS5WBCR4 is a white surface mount LED designed for high-performance lighting applications. This component features a 3.2V forward voltage and a maximum current rating of 180mA, with a typical test current of 150mA. At 150mA, it delivers 32 lumens of light output with a luminous efficacy of 67 lm/W and a wide viewing angle of 120°. The LED is housed in a 2828 (7070 Metric) package measuring 7.00mm x 6.00mm, with a seated height not exceeding 1.50mm. Its water clear encapsulation ensures efficient light transmission. This component is commonly utilized in automotive lighting, industrial illumination, and general signage. The OVS5WBCR4 is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | White |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 180mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 67 lm/W |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 32lm (24lm ~ 40lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy
OVTL09LG3W
LED LEDNIUM COOL WHT 7000K SMD

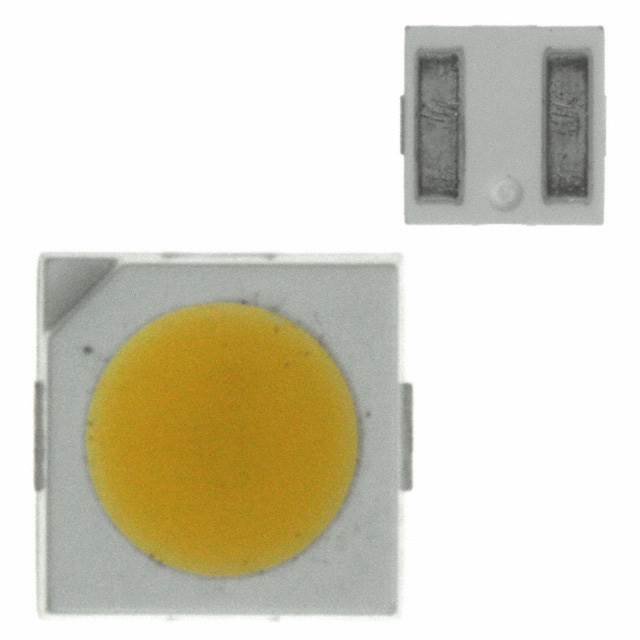

OVS5MWWBCR4
