OVSASBLCR8
LED RED CLEAR 4PLCC SMDManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

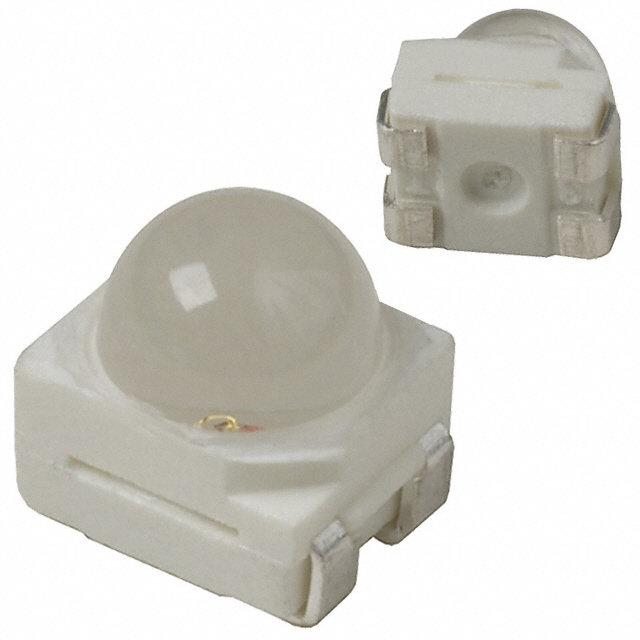

The TT Electronics/Optek Technology OVSASBLCR8 is a red, clear lens, 4-PLCC surface-mount LED. Emitting at a dominant wavelength of 628nm, this component provides 2200mcd luminous intensity at a typical forward voltage of 2.5V and a test current of 50mA. Its 3.20mm L x 2.80mm W footprint with a 3.45mm maximum height is suitable for space-constrained applications. The domed top lens offers a 60° viewing angle. This discrete LED is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 60° |
| Height (Max) | 3.45mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 628nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 2.60mm Dia |
