OVSASBC2R8
LED RED CLEAR 4PLCC SMDManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

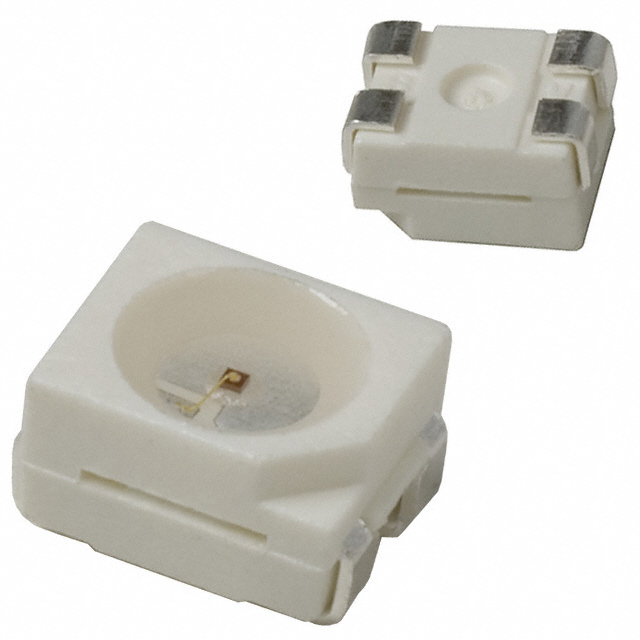

TT Electronics/Optek Technology OVSASBC2R8 is a red 628nm LED designed for surface mount applications, utilizing a 4-PLCC package. This discrete LED component offers a typical forward voltage of 2.5V and a test current of 50mA, achieving a millicandela rating of 900mcd. The clear, colorless lens is styled as round with a flat top, providing a wide 120° viewing angle. With dimensions of 3.20mm L x 2.80mm W and a maximum height of 1.95mm, it is supplied on tape and reel. This component is suitable for various indication applications across industries such as industrial automation, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 900mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Height (Max) | 1.95mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 628nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
