OVS9WBCR4
LED WHITE CLEAR 2PLCC SMDManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

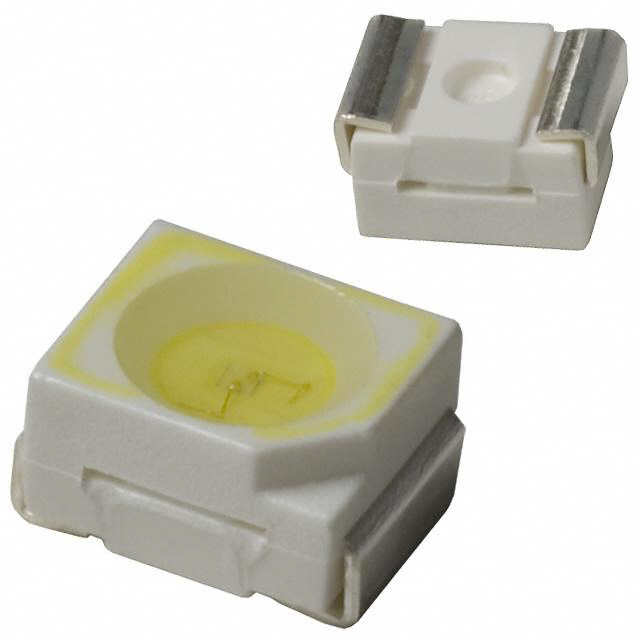

TT Electronics/Optek Technology OVS9WBCR4 is a white, clear LED designed for discrete indication applications. This surface-mount component utilizes a 2-PLCC package with dimensions of 3.20mm L x 2.80mm W and a maximum height of 1.80mm. It features a clear, round lens with a flat top, and a typical forward voltage of 3.2V. The LED is rated for 750mcd luminous intensity at a test current of 20mA, with a wide 120° viewing angle. The OVS9WBCR4 is supplied on tape and reel, making it suitable for automated assembly processes in industries such as industrial automation, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 750mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
