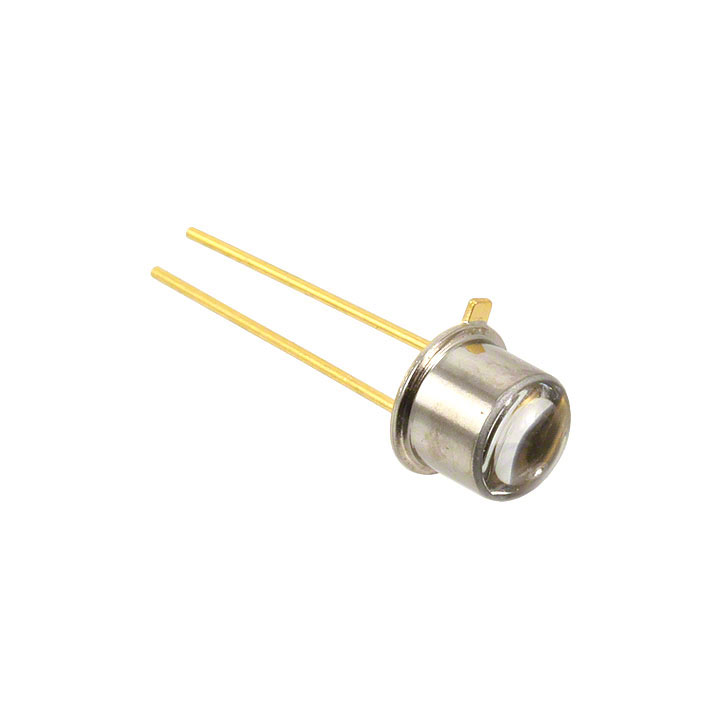

OVM4RTXV
LED RED CLEAR TO46 T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More
TT Electronics/Optek Technology OVM4RTXV is a red, through-hole LED designed for discrete indication applications. This component features a clear, colorless lens with a domed top, providing a viewing angle of 18 degrees. It emits light with a dominant wavelength of 624nm and a peak wavelength of 630nm. The forward voltage (Vf) is typically 1.8V, and it achieves a millicandela rating of 3300mcd at a test current of 20mA. Packaged in a TO-46-2 metal can with a lens top, the OVM4RTXV is suitable for industrial automation and general electronic equipment where reliable visual signaling is required. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3300mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 18° |
| Height (Max) | 4.79mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | TO-46 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 4.63mm Dia |
