OVM4G
LED GREEN CLEAR TO46 T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

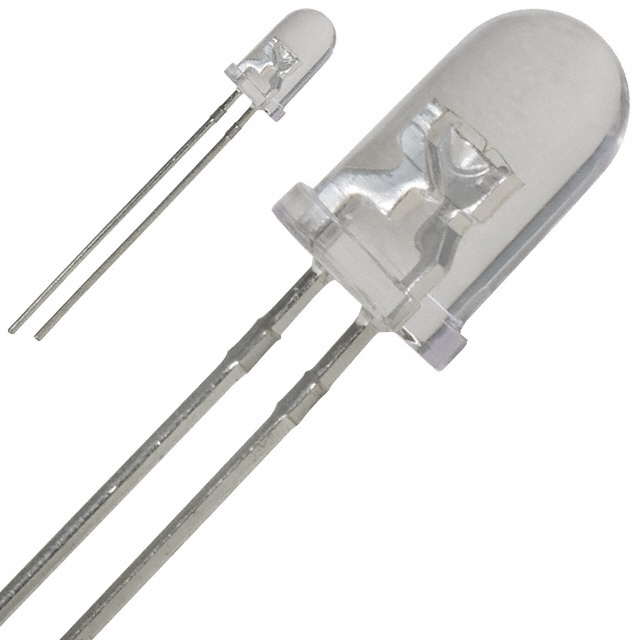

TT Electronics/Optek Technology OVM4G is a discrete, through-hole mounted LED with a clear, domed lens. This green LED emits light at a dominant wavelength of 530nm, with a peak wavelength also at 530nm. Tested at 20mA, it provides a luminous intensity of 6520mcd. The forward voltage (Vf) is typically 2.6V. Housed in a TO-46-2 metal can package with a lens top, its dimensions are characterized by a 4.63mm diameter lens and a maximum height of 4.79mm. The viewing angle is 18°. This component is commonly utilized in industrial automation, control systems, and medical instrumentation.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6520mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.6V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 18° |
| Height (Max) | 4.79mm |
| Wavelength - Peak | 530nm |
| Wavelength - Dominant | 530nm |
| Supplier Device Package | TO-46 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 4.63mm Dia |
