OVM4B
LED BLUE CLEAR TO46 T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

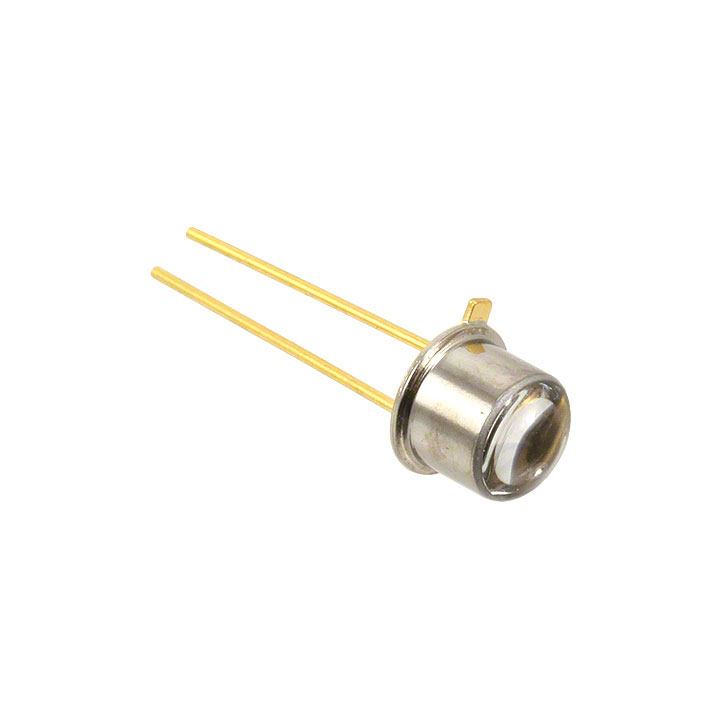

TT Electronics/Optek Technology's OVM4B is a discrete blue LED with a dominant wavelength of 465nm and a peak wavelength of 463nm. This through-hole component features a clear, domed top metal can package (TO-46-2 Lens Top Metal Can) with a 2.6V typical forward voltage. The OVM4B achieves a luminous intensity of 2260mcd at a 20mA test current, with a narrow viewing angle of 18°. This LED is suitable for indication applications across various industries, including industrial automation, medical devices, and consumer electronics where precise visual feedback is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2260mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.6V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 18° |
| Height (Max) | 4.79mm |
| Wavelength - Peak | 463nm |
| Wavelength - Dominant | 465nm |
| Supplier Device Package | TO-46 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 4.63mm Dia |
