OVLKQGT6
LED RED DIFFUSED 3MM OVAL T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

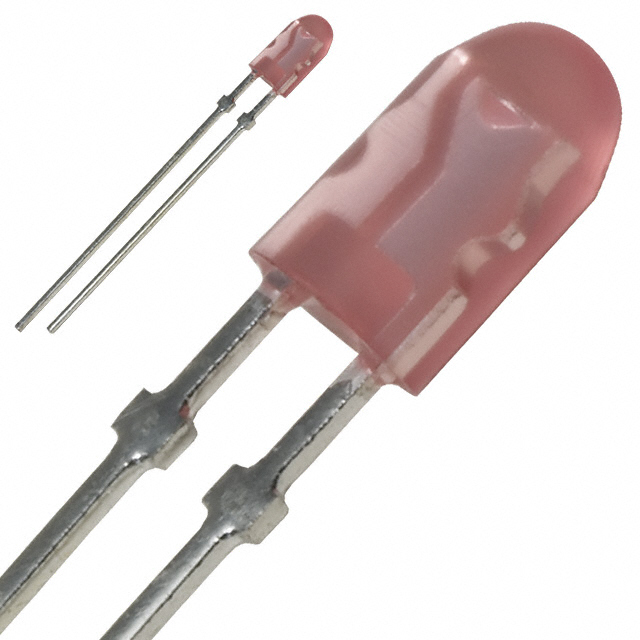

TT Electronics/Optek Technology OVLKQGT6 is a red diffused 3mm oval through-hole LED. Featuring a dominant wavelength of 616nm and a typical forward voltage of 2.1V at 20mA, this discrete indicator offers a millicandela rating of 430mcd. The diffused lens provides a wide viewing angle of 100° (lateral) and 60° (axial), with a lens color of orange and a domed top. This component is suitable for various industrial applications including instrumentation, control panels, and general status indication. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 430mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Orange |
| Current - Test | 20mA |
| Viewing Angle | 100°, 60° |
| Height (Max) | 9.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 616nm |
| Supplier Device Package | 3mm Oval |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 4.00mm x 2.80mm |
