OVLKBGT6
LED BLUE DIFFUSED 3MM OVAL T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

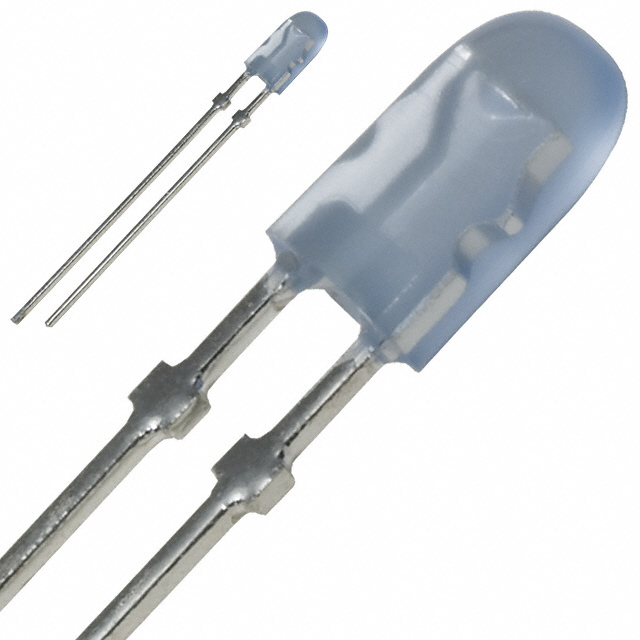

TT Electronics/Optek Technology OVLKBGT6 is a blue diffused 3mm oval through-hole LED. This discrete indicator component operates with a typical forward voltage of 3.4V and a standard test current of 20mA, producing a millicandela rating of 300mcd. The dominant wavelength is 470nm, with a diffused lens color and a domed top for optimal light distribution. Its viewing angles are rated at 100° and 60°. Designed for robust performance, this component is suitable for applications requiring reliable visual feedback in industrial automation, medical devices, and consumer electronics. The package is a Radial type, supplied in Bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 300mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | Blue |
| Current - Test | 20mA |
| Viewing Angle | 100°, 60° |
| Height (Max) | 9.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 3mm Oval |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 4.00mm x 2.80mm |
