OVLJGGD8
LED GREEN DIFFUSED 4MM OVAL T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

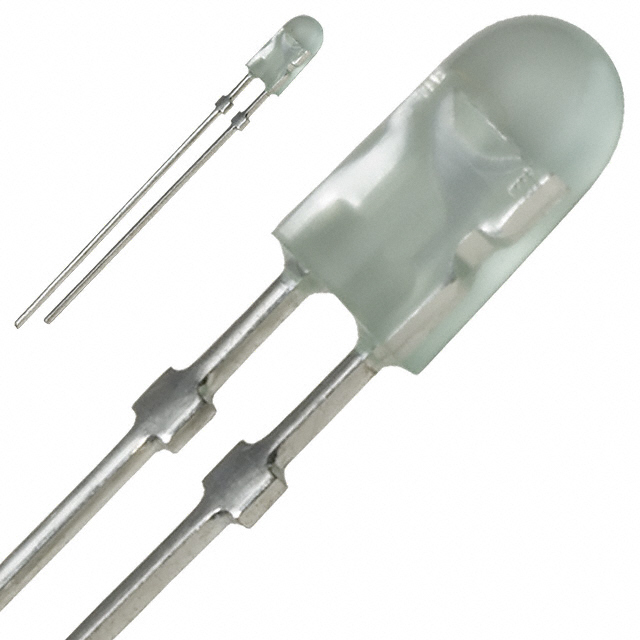

TT Electronics/Optek Technology OVLJGGD8 is a green diffused 4mm oval through-hole LED. This discrete indicator features a dominant wavelength of 525nm and a typical forward voltage of 3.6V at a test current of 20mA. It achieves a luminous intensity of 1200mcd. The component's 4mm x 2.90mm oval lens is diffused for wide-angle illumination, offering viewing angles of 100° and 50°. This component is suitable for various industrial applications requiring reliable visual feedback, including industrial automation and general signaling. The OVLJGGD8 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 100°, 50° |
| Height (Max) | 10.70mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 4mm Oval |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 4.00mm x 2.90mm |
