OVLEW5CB6
LED WHITE CLEAR 5MM T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

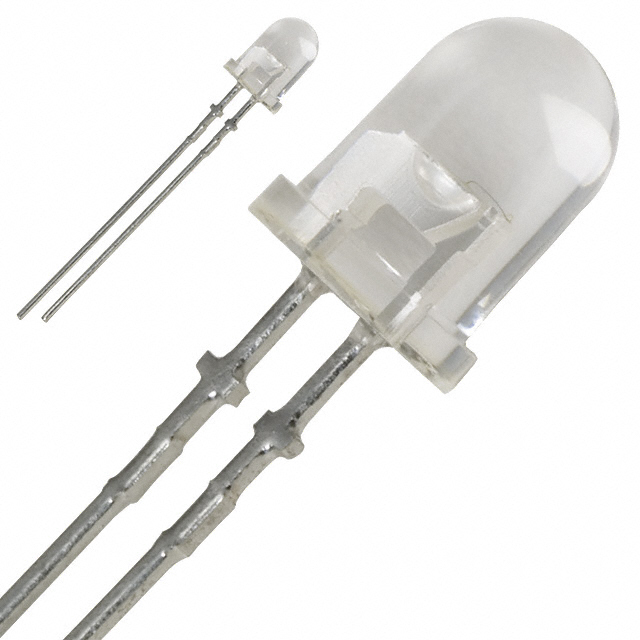

The TT Electronics/Optek Technology OVLEW5CB6 is a white, clear, 5mm through-hole LED designed for discrete indication. This component features a standard configuration with a typical forward voltage of 3.4V and a forward current of 20mA. It delivers a luminous intensity of 1600mcd with a 50° viewing angle. The lens is colorless and transparent, with a domed top, and the package is radial. Applications for this LED include industrial automation, consumer electronics, and general signaling.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 10.88mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
