OVFSB6C8
LED BLUE CLEAR T/HManufacturer: TT Electronics/Optek Technology
Categories: LED Indication - Discrete
Quality Control: Learn More

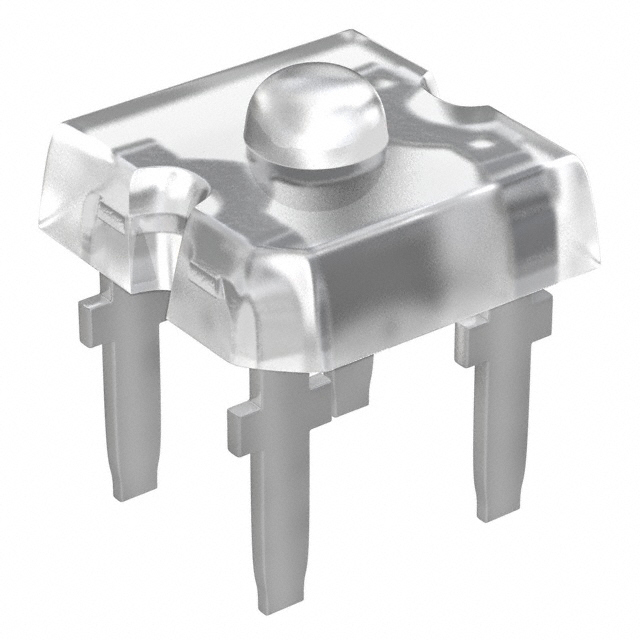

TT Electronics/Optek Technology OVFSB6C8 is a blue, 470nm wavelength LED designed for discrete indication applications. This through-hole component features a clear, domed-top lens with a 3.00mm diameter and a 60° viewing angle. The packaged device is a 4-DIP (0.200", 5.08mm) with a typical forward voltage of 4V. The OVFSB6C8 is rated for a test current of 30mA and is supplied in a tube. Applications for this type of LED include industrial automation and control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Blue |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 4V |
| Lens Color | Colorless |
| Current - Test | 30mA |
| Viewing Angle | 60° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
