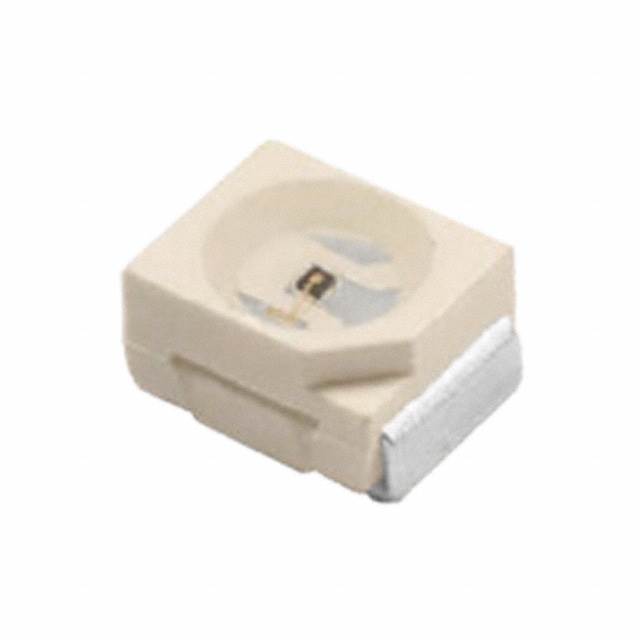

OP280KT
EMITTER IR 850NM 1A PLCCManufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology OP280KT is an infrared (IR) emitter designed for surface-mount applications. This 2-PLCC packaged component features an 850nm wavelength and a 90° viewing angle, making it suitable for optical sensing and communication systems. It operates with a typical forward voltage of 1.55V and can handle a continuous forward current of up to 1A. The emitter is supplied in a Tape & Reel (TR) package, facilitating automated assembly processes. Its operating temperature range is -25°C to 85°C (TA). This component finds application in industrial automation, security systems, and consumer electronics where reliable IR emission is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Viewing Angle | 90° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | - |
