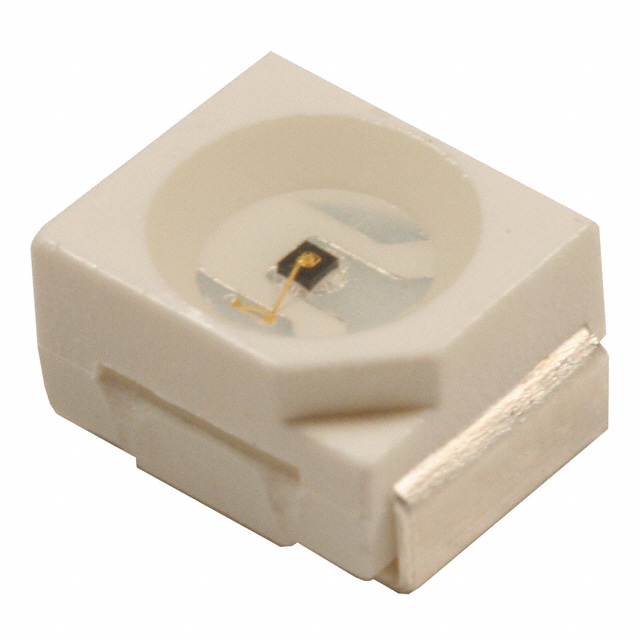

OP272
EMITTER IR 890NM 50MA SMDManufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology OP272 is an infrared (IR) emitter operating at a peak wavelength of 890nm. This surface-mount device features a 25° viewing angle and a typical forward voltage of 1.5V at a maximum DC forward current of 50mA. Packaged in a 2-SMD, Yoke Bend configuration on tape and reel, the OP272 offers a robust operating temperature range of -40°C to 85°C. Its design makes it suitable for applications in industrial automation, optical sensing, and security systems where reliable IR illumination is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Yoke Bend |
| Wavelength | 890nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 25° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | - |
Request a Quote
Clients Also Buy
OUE8A400Y1
EMITTER UV 400NM 100MA TO-46

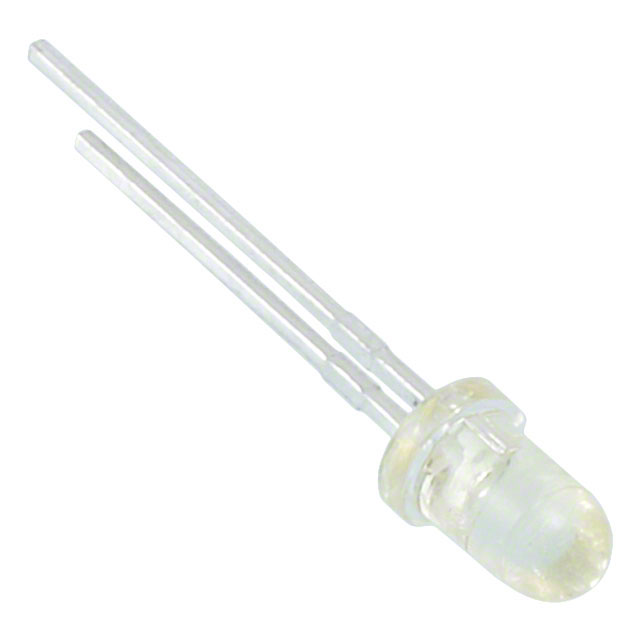

OP169B
