OP270
EMITTER IR 890NM 50MA AXIALManufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

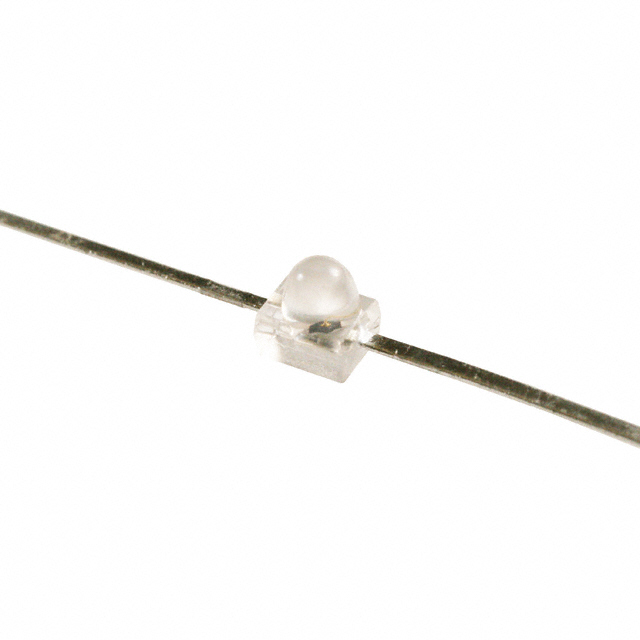

TT Electronics/Optek Technology OP270, an Infrared (IR) emitter, operates at a peak wavelength of 890nm with a typical forward voltage of 1.5V at 50mA. This axial-packaged device features a 25° viewing angle and is designed for through-hole mounting. Its operating temperature range extends from -40°C to 85°C, making it suitable for demanding environments. The OP270 is commonly utilized in industrial automation, security systems, and optical sensing applications where reliable infrared emission is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | Axial |
| Wavelength | 890nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 25° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | - |
