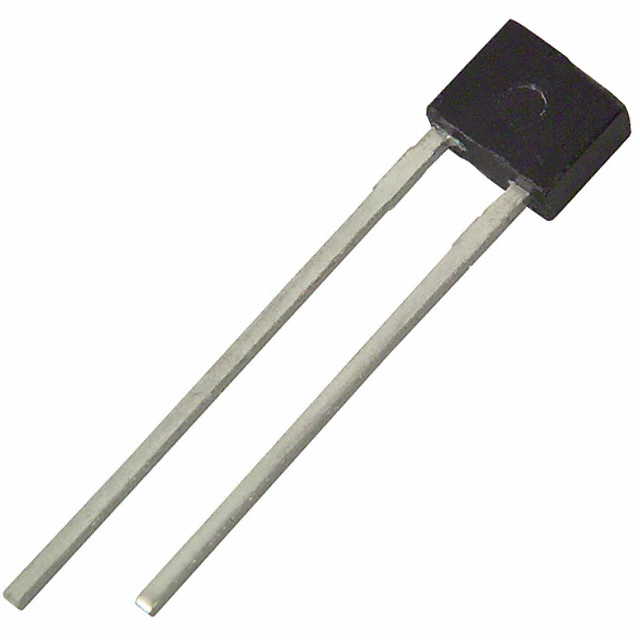

OP268FPS
EMITTER IR 850NM 50MA RADIALManufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The TT Electronics/Optek Technology OP268FPS is an infrared emitter designed for applications requiring precise optical signaling. This radial-mount component operates at a peak wavelength of 850nm, with a typical forward voltage of 1.8V and a maximum DC forward current of 50mA. It offers a minimum radiant intensity of 0.1mW/cm² at 20mA and a viewing angle of 50°. The OP268FPS is suitable for through-hole mounting and operates within an ambient temperature range of -40°C to 100°C. Its performance characteristics make it a reliable choice for industrial automation, security systems, and optical sensing in various environments. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 0.1mW/cm² @ 20mA |
