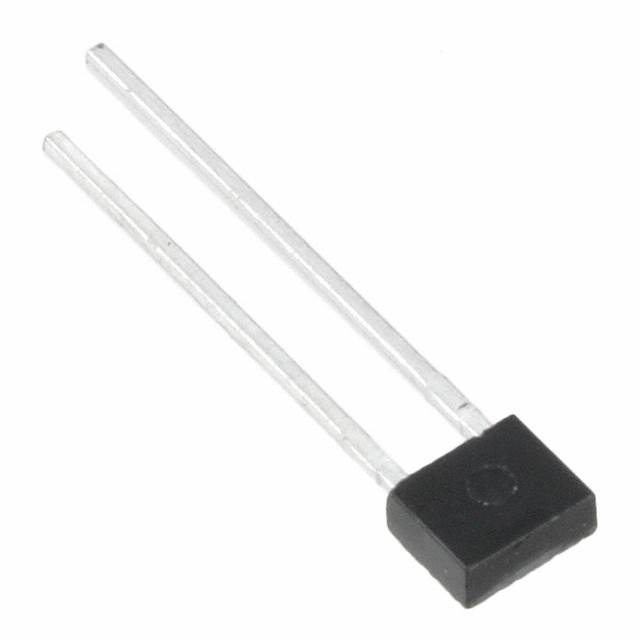

OP268FC
EMITTER IR 890NM 50MA RADIALManufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The TT Electronics/Optek Technology OP268FC is an infrared (IR) emitter designed for demanding applications. This radial-packaged component features a 890nm wavelength, ideal for optical sensing and communication systems. With a maximum forward current of 50mA and a typical forward voltage of 1.5V, it delivers a minimum radiant intensity of 0.36mW/cm² at 20mA. The wide 104° viewing angle ensures broad coverage for various detection scenarios. Operating within a wide temperature range of -40°C to 100°C, the OP268FC is suitable for use in industrial automation, security systems, and medical devices. Its through-hole mounting type and bulk packaging are optimized for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 890nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 104° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 0.36mW/cm² @ 20mA |
