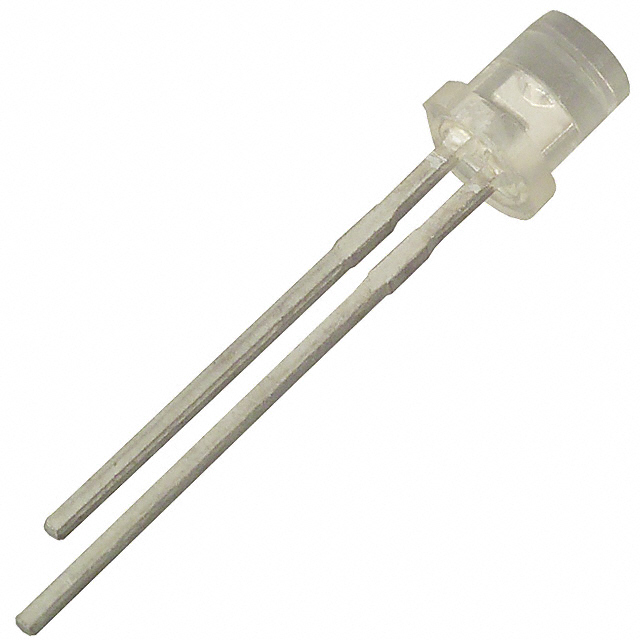

OP265W
EMITTER IR 890NM 50MA T-1Manufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology OP265W is an infrared emitter designed for demanding applications. This T-1 package device emits at a wavelength of 890nm with a typical forward voltage of 1.8V and a maximum DC forward current of 50mA. Featuring a wide 90° viewing angle, the OP265W is suitable for optical sensing, industrial automation, and security systems. Its through-hole mounting facilitates integration into various PCB designs. The component operates reliably across a wide temperature range from -40°C to 100°C (TA). The bulk packaging ensures efficient handling in high-volume manufacturing environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T-1 |
| Wavelength | 890nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Viewing Angle | 90° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | - |
