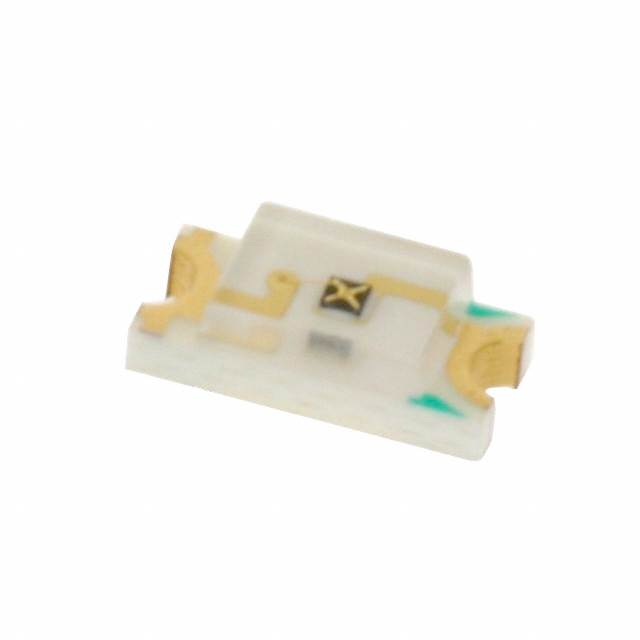

OP250
EMITTER IR 880NM 50MA 1206Manufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology OP250 is an infrared (IR) emitter designed for surface mount applications. This component features a 1206 (3216 Metric) package and operates with a typical forward voltage of 1.5V and a maximum DC forward current of 50mA. The emitter's wavelength is 880nm, with a wide viewing angle of 160°. It is supplied on tape and reel for automated assembly. The OP250 is suitable for use in various industrial automation, optical sensing, and data communication systems where reliable IR emission is critical. Operating temperature range is -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 880nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 160° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | - |
