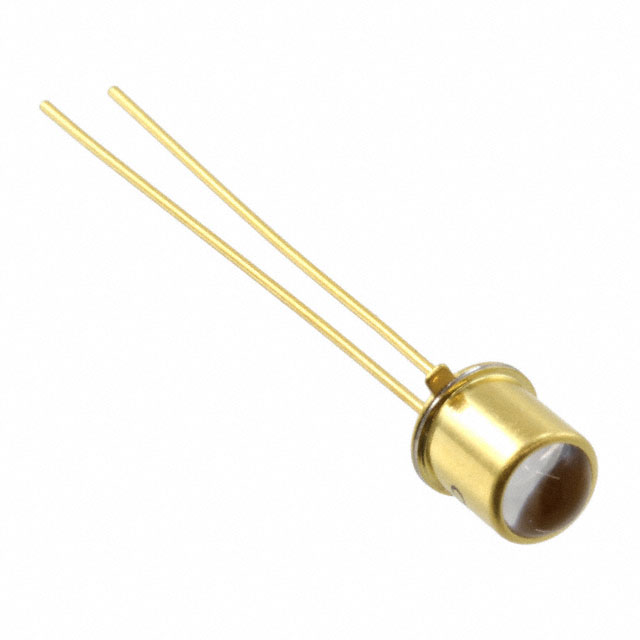

OP235TXV
EMITTER IR 890NM 100MA TO-46Manufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology OP235TXV is an infrared (IR) emitter designed for applications requiring precise near-infrared illumination. This component features an 890nm wavelength, emitting light in the near-IR spectrum. It operates with a typical forward voltage of 1.55V and a maximum DC forward current of 100mA, delivering a focused 18° beam angle. Housed in a TO-46-2 metal can package with a lens top, it is suitable for through-hole mounting. The OP235TXV is engineered for reliability across a wide operating temperature range of -55°C to 125°C (TA). This IR emitter finds application in industries such as industrial automation, medical devices, and security systems where targeted IR signaling is critical.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 890nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Viewing Angle | 18° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
