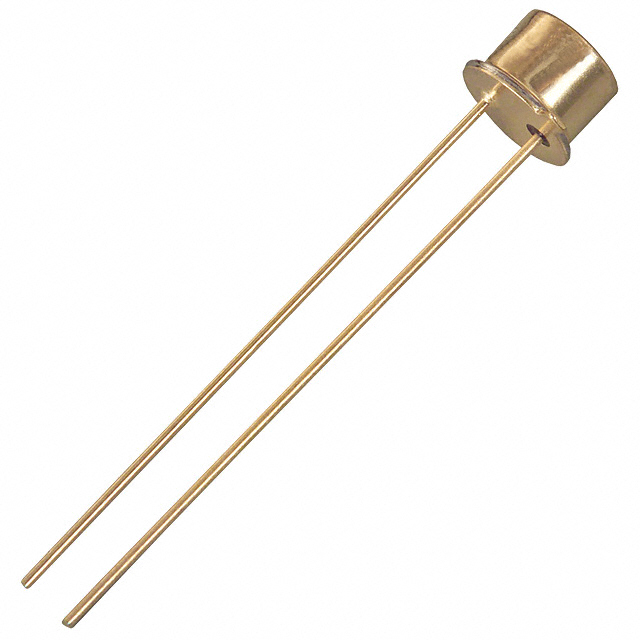

OP231W
EMITTER IR 890NM 100MA TO-46Manufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology OP231W is an infrared (IR) emitter with a peak wavelength of 890nm. This TO-46-2 metal can package component features a forward voltage (Vf) of 2V and a maximum DC forward current (If) of 100mA. The emitter offers a 50° viewing angle and a radiant intensity of 10mW/sr at 100mA. It is designed for through-hole mounting and operates within an ambient temperature range of -65°C to 125°C. This component is commonly utilized in industrial automation, security systems, and optical sensing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Metal Can |
| Wavelength | 890nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -65°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
