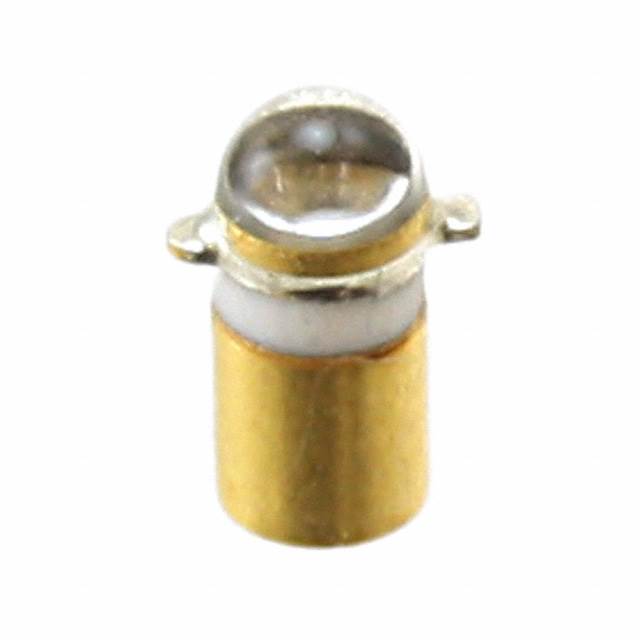

OP223TX
EMITTER IR 890NM 100MA MINI-PILLManufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology's OP223TX is an infrared emitter designed for applications demanding precise optical signaling. This Mini-pill package component operates at a peak wavelength of 890nm, emitting infrared light for various sensing and communication tasks. With a maximum forward current of 100mA and a typical forward voltage of 1.3V, the OP223TX offers efficient operation. Its 24° viewing angle ensures focused emission for targeted applications. The surface mount design facilitates integration into compact electronic assemblies. Operating across a wide temperature range of -65°C to 125°C (TA), this emitter is suitable for demanding industrial, automotive, and consumer electronics environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Mini-pill |
| Wavelength | 890nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -65°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
