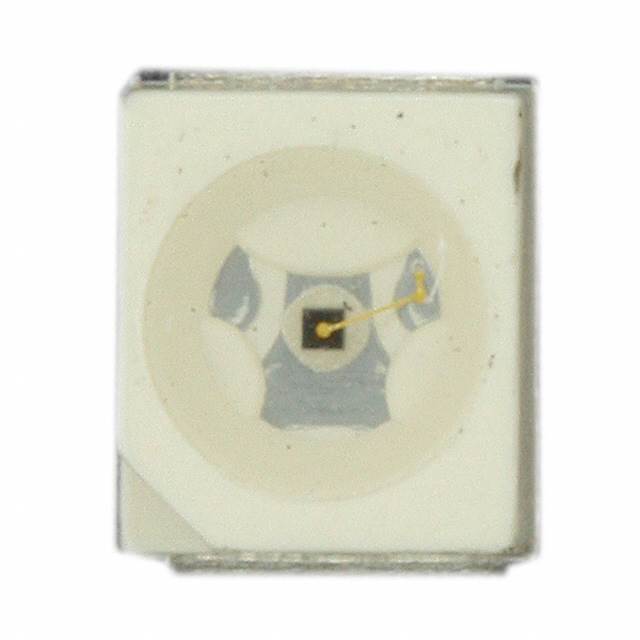

OP180
EMITTER IR 940NM 1A PLCCManufacturer: TT Electronics/Optek Technology
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
TT Electronics/Optek Technology OP180 is a surface-mount infrared (IR) emitter designed for high-power applications. This component features a 940nm wavelength with a typical forward voltage of 1.28V and a maximum DC forward current of 1A. Its radiant intensity is specified at a minimum of 1.5mW/cm² at 20mA, and it offers a wide 100° viewing angle. The OP180 is housed in a 2-PLCC package and operates within an ambient temperature range of -25°C to 85°C. This emitter is suitable for integration into systems across automotive, industrial, and advanced sensing markets where robust IR illumination is critical. It is supplied in Tape & Reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Wavelength | 940nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.28V |
| Viewing Angle | 100° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 1.5mW/cm² @ 20mA |
