OVSPRBCR4
LED RED 625NM SMDManufacturer: TT Electronics/Optek Technology
Categories: LED Color Lighting
Quality Control: Learn More

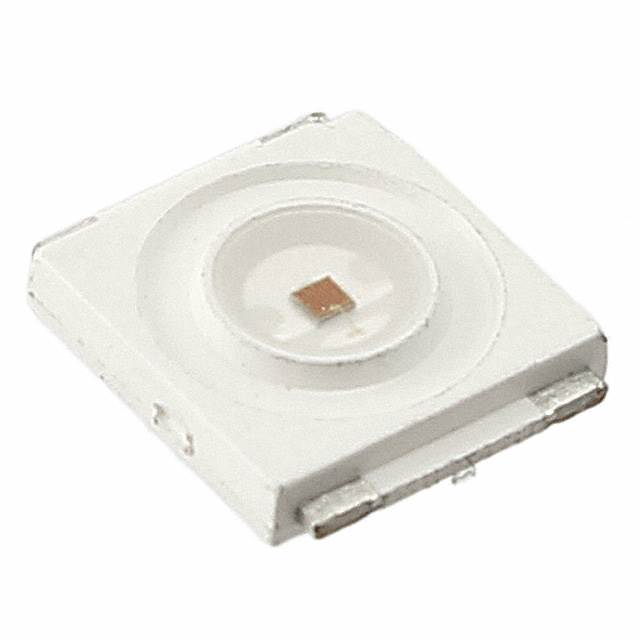

TT Electronics/Optek Technology OVSPRBCR4 is a red LED component designed for surface mount applications. This device emits light at a peak wavelength of 625nm, with a typical forward voltage of 2.5V and a maximum forward current of 400mA. The OVSPRBCR4 offers a luminous flux of 44 lumens at the test current and temperature of 25°C, with a luminous efficacy of 44 lm/W. Its 2424 (6060 Metric) package measures 0.236 inches by 0.236 inches (6.00mm x 6.00mm) with a seated height of 0.059 inches (1.50mm). Featuring a wide 120° viewing angle, this LED is supplied on tape and reel. The OVSPRBCR4 finds application in general lighting, signage, and indicator solutions across various industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2424 (6060 Metric) |
| Color | Red |
| Wavelength | 625nm (620nm ~ 630nm) |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Current - Test | 400mA |
| Viewing Angle | 120° |
| Current - Max | 400mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 44 lm/W |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 44lm (33lm ~ 54lm) |
