OVSPBBCR4
LED BLUE 468NM SMDManufacturer: TT Electronics/Optek Technology
Categories: LED Color Lighting
Quality Control: Learn More

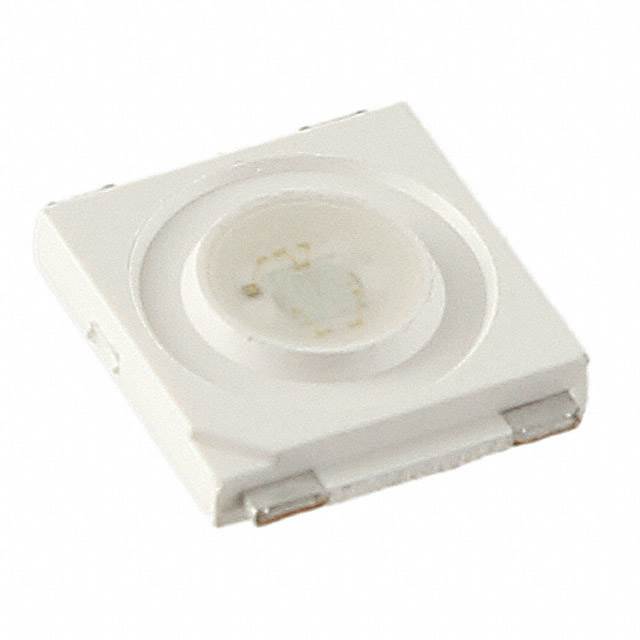

TT Electronics/Optek Technology OVSPBBCR4 is a high-intensity blue LED designed for surface mount applications. This component features a 2424 (6060 Metric) SMD package with dimensions of 0.236" x 0.236" (6.00mm x 6.00mm) and a maximum seated height of 0.059" (1.50mm). It emits blue light with a peak wavelength of 468nm, with a range of 460nm to 476nm. The LED operates with a typical forward voltage of 3.6V and can handle a maximum current of 350mA, with the test current also specified at 350mA. At this current, it delivers a luminous flux of 20 lumens (ranging from 13lm to 27lm) and achieves an efficacy of 16 lm/W. The viewing angle is a broad 120°. This LED is supplied on tape and reel (TR) and finds application in various industries requiring robust solid-state illumination solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2424 (6060 Metric) |
| Color | Blue |
| Wavelength | 468nm (460nm ~ 476nm) |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 350mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 16 lm/W |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 20lm (13lm ~ 27lm) |
Request a Quote
Clients Also Buy

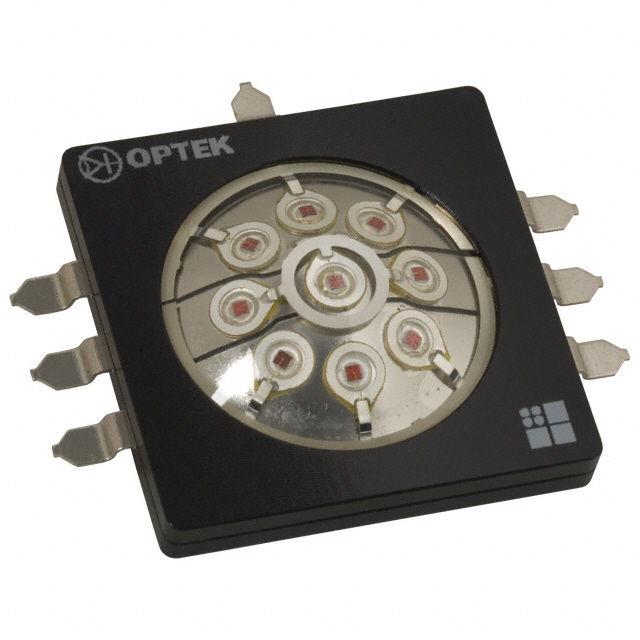

OVTL09LGAR
LED RED 625NM SMD

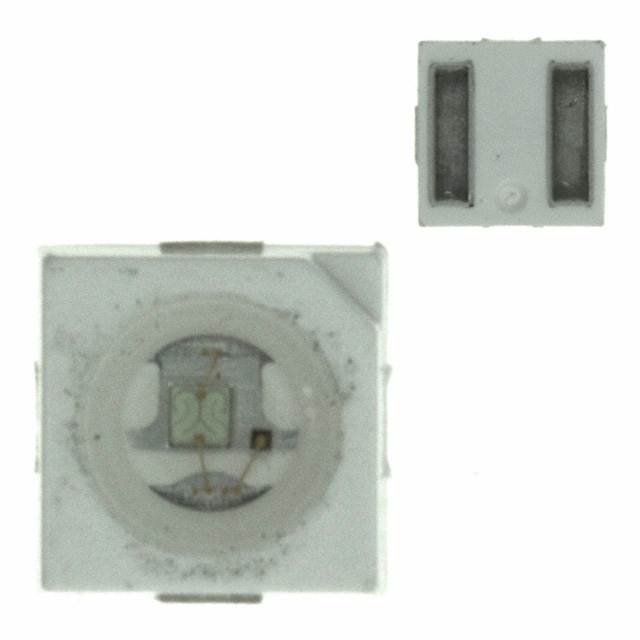

OVS5MGBCR4
