OPA741Y23
LED MOD OPA741 YELLOW RINGManufacturer: TT Electronics/Optek Technology
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

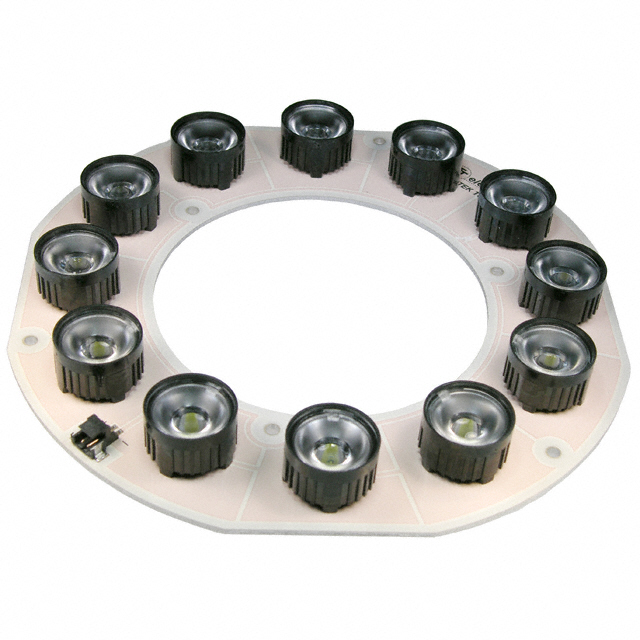

TT Electronics/Optek Technology OPA741Y23 is a yellow LED module featuring a ring (disc) configuration. This component, from the OPA741 series, operates with a typical forward voltage of 15V and a test current of 700mA, delivering 357 lumens (typ) of luminous flux at 25°C. The module exhibits an efficacy of 34 lm/W at the test current and a narrow viewing angle of 23°. Its light emitting surface is designed with a flat lens. This LED module is suitable for applications in general lighting and automotive lighting.
Additional Information
Series: OPA741RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | Yellow |
| Wavelength | 587nm |
| Size / Dimension | 158.80mm Dia |
| Type | LED Module |
| Configuration | Ring (Disc) |
| Voltage - Forward (Vf) (Typ) | 15V |
| Height | 1.68mm |
| Current - Test | 700mA |
| Viewing Angle | 23° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 34 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 357lm (Typ) |
