OPA739W
LED MOD OPA739 WH LNR STR 6500KManufacturer: TT Electronics/Optek Technology
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

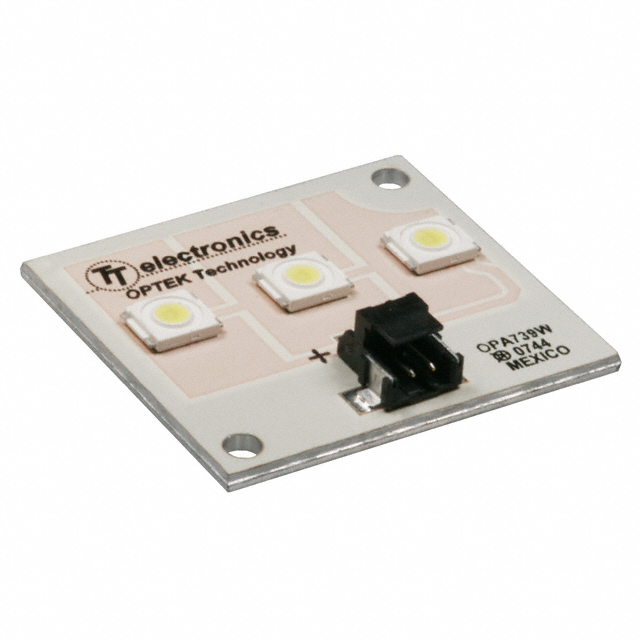

The TT Electronics/Optek Technology OPA739W is a linear LED module from the OPA739 series, designed for demanding lighting applications. This cool white module operates at a correlated color temperature of 6500K, delivering a typical luminous flux of 144 lumens at 350mA test current. With a forward voltage of 10.8V (typical) and a maximum current rating of 350mA, it achieves a luminous efficacy of 38 lm/W at the test conditions. The module features a flat lens and a 120° viewing angle, providing uniform illumination. Its compact dimensions of 38.10mm L x 34.92mm W with a height of 7.62mm, coupled with the integrated connector, facilitate straightforward integration into systems. This component finds application in general lighting, architectural lighting, and display backlighting.
Additional Information
Series: OPA739RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | - |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 38.10mm L x 34.92mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 10.8V |
| Height | 7.62mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 350mA |
| Lumens/Watt @ Current - Test | 38 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 144lm (Typ) |
