OPA729WD
LED MOD OPA729 WH LNR STR 6500KManufacturer: TT Electronics/Optek Technology
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

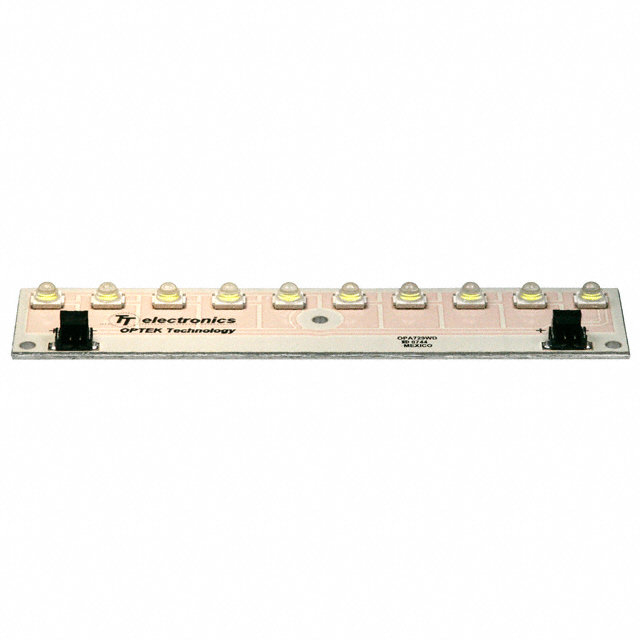

The TT Electronics/Optek Technology OPA729WD is a high-output linear LED module from the OPA729 series. This cool white module operates at a correlated color temperature (CCT) of 6500K, delivering 480 lumens typical luminous flux at 25°C. Designed for efficient illumination, it achieves 38 lumens per watt at a test current of 700mA, with a maximum specified current of 700mA. The module features a flat lens and a 40° viewing angle, with an integrated connector for ease of integration. Its dimensions are 127.00mm in length and 29.21mm in width, with a height of 5.89mm. This component is suitable for applications in general lighting and professional displays.
Additional Information
Series: OPA729RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | - |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 127.00mm L x 29.21mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 18V |
| Height | 5.89mm |
| Current - Test | 700mA |
| Viewing Angle | 40° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 38 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 480lm (Typ) |
