OPB702R
SENSR OPTO TRANS 3.81MM REFL PCBManufacturer: TT Electronics/Optek Technology
Categories: Analog Output
Quality Control: Learn More

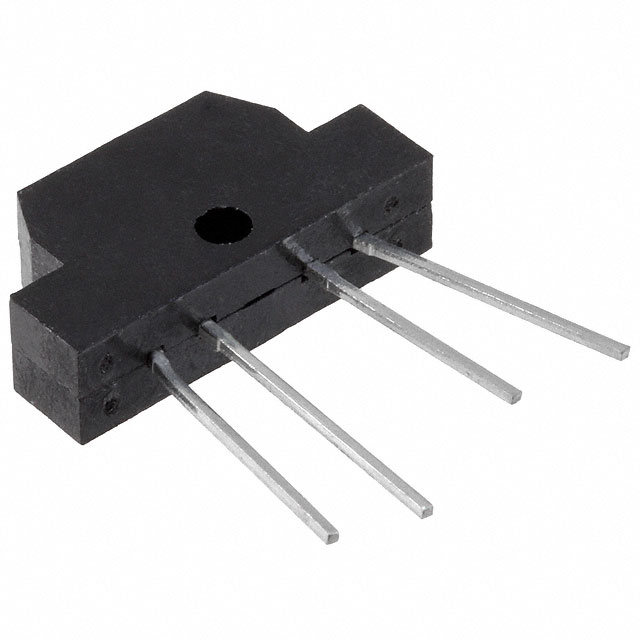

TT Electronics/Optek Technology OPB702R Reflective Optical Sensor. This through-hole mounted component features a 0.150" (3.81mm) sensing distance with a 50mA DC forward current. The output is a transistor with a base-emitter resistor, designed for PCB mounting. The OPB702R is suitable for applications requiring non-contact object detection and position sensing. It is utilized in industrial automation, consumer electronics, and automotive systems where reliable object presence detection is critical. The maximum collector-emitter breakdown voltage is 15V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Output Type | Transistor, Base-Emitter Resistor |
| Sensing Distance | 0.150"" (3.81mm) |
| Sensing Method | Reflective |
| Mounting Type | Through Hole |
| Response Time | - |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Current - DC Forward (If) (Max) | 50 mA |
