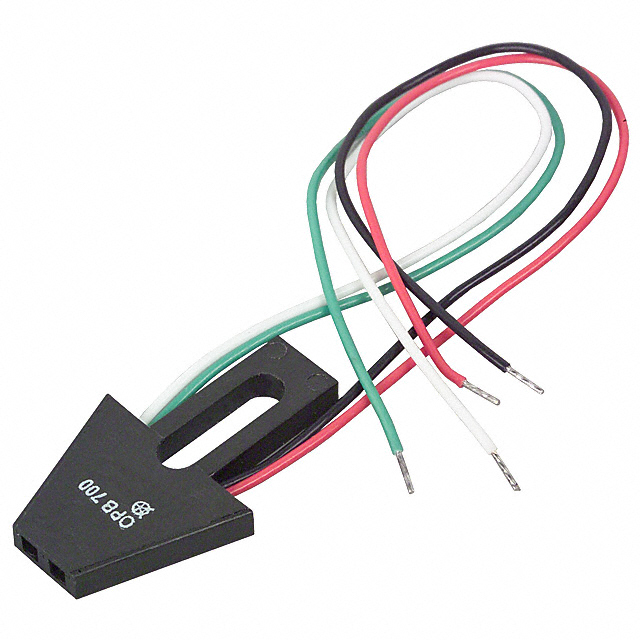

OPB700
SNSR OPTO TRANS 5.08MM REFL C-MTManufacturer: TT Electronics/Optek Technology
Categories: Analog Output
Quality Control: Learn More
TT Electronics/Optek Technology OPB700 is a reflective optical sensor module featuring a pre-wired, 0.200-inch (5.08mm) sensing distance. This component utilizes a phototransistor output and is designed for chassis mounting. With a maximum collector-emitter breakdown voltage of 24V and a DC forward current capability of 100mA, the OPB700 is suitable for applications requiring non-contact object detection and position sensing. Typical industries benefiting from this sensor include industrial automation, office equipment, and consumer electronics. The reflective sensing method allows for detection of surfaces that reflect light back to the sensor.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Output Type | Phototransistor |
| Sensing Distance | 0.200"" (5.08mm) |
| Sensing Method | Reflective |
| Mounting Type | Chassis Mount |
| Response Time | - |
| Voltage - Collector Emitter Breakdown (Max) | 24 V |
| Current - DC Forward (If) (Max) | 100 mA |
