EN18ABHB11A0F26
18 MM ABSOLUTE ENCODERManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More

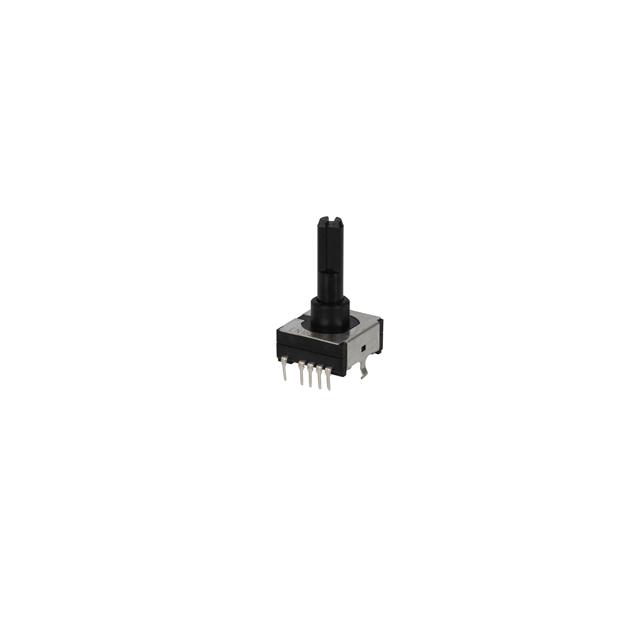

TT Electronics/BI EN18 series absolute rotary encoder, part number EN18ABHB11A0F26. This horizontal, through-hole mount encoder features a binary output and a 30,000-cycle rotational life. The EN18ABHB11A0F26 is designed with an 18mm ABSOLUTE encoder format, providing precise positional feedback. It operates with a supply voltage of 12V and is terminated with PC pins for robust connection. This component is suitable for applications requiring definitive position sensing in industrial automation, robotics, and control systems. The encoder includes detents for tactile feedback and utilizes a shaft actuator.
Additional Information
Series: EN18RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Binary (Absolute) |
| Mounting Type | PCB, Through Hole |
| Orientation | Horizontal |
| Termination Style | PC Pin |
| Voltage - Supply | 12V |
| Encoder Type | Absolute |
| Detent | Yes |
| Pulses per Revolution | - |
| Actuator Type | Shaft |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
Request a Quote
