EN16-H20AF15
ROTARY ENCODER MECHANICAL 24PPRManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More

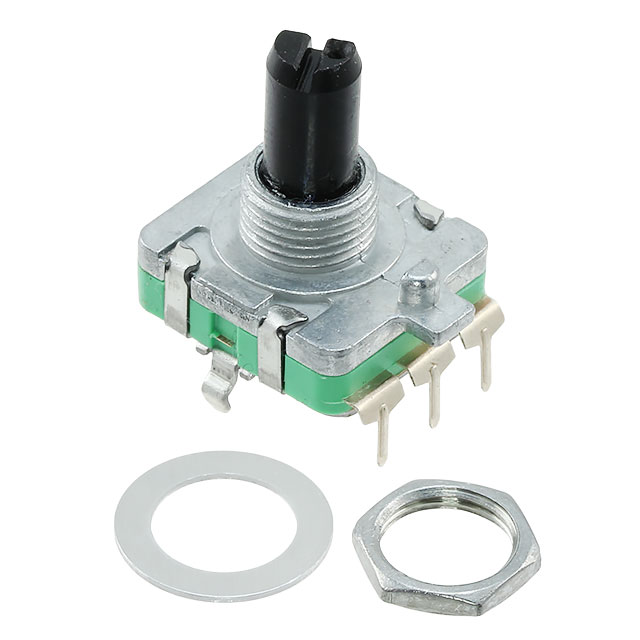

TT Electronics/BI EN16 series rotary encoder, part number EN16-H20AF15. This mechanical encoder provides 24 pulses per revolution with quadrature (incremental) output. It features a vertical orientation for panel mounting and PCB through-hole termination. The encoder utilizes a 6mm diameter flatted end actuator and has a rotational life of 30,000 cycles minimum. This component is suitable for applications requiring precise rotational position sensing in industrial automation, consumer electronics, and automotive systems. It is supplied in tray packaging.
Additional Information
Series: EN16RoHS Status: Request inventory verificationManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | No |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
