EN12-VN20AF20
ROTARY ENCODER MECHANICAL 24PPRManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More

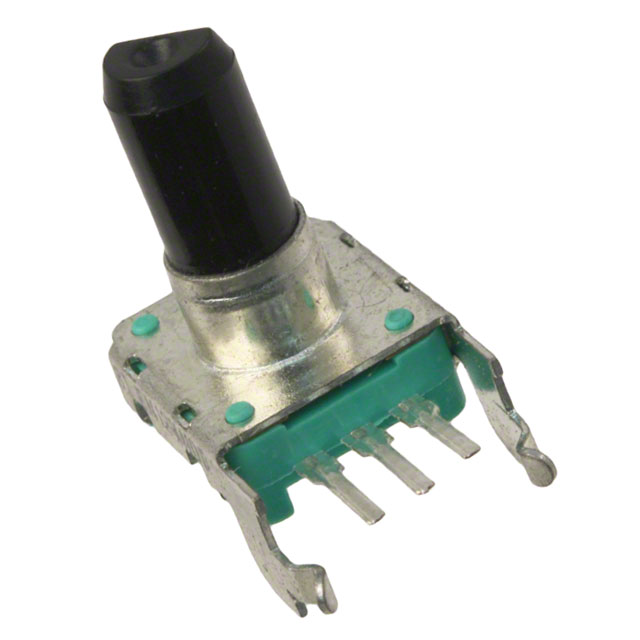

TT Electronics/BI EN12 series EN12-VN20AF20 is a mechanical rotary encoder with a right-angle, through-hole PCB mount orientation. This component offers 24 pulses per revolution (PPR) in quadrature output, providing incremental position feedback. Featuring a 6mm diameter flatted end actuator, it is designed for a rotational life of a minimum of 30,000 cycles. The termination style is PC pin. This encoder is commonly utilized in industrial automation, control systems, and human-machine interface applications where precise rotational input is required.
Additional Information
Series: EN12RoHS Status: Request inventory verificationManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Right Angle |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | No |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
