EN11-VSB1AQ15
ROTARY ENCODER MECHANICAL 20PPRManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More
TT Electronics/BI EN11 series rotary encoder, part number EN11-VSB1AQ15. This mechanical encoder provides 20 pulses per revolution with quadrature (incremental) output. It features a 6mm diameter knurled end actuator and a right-angle mounting orientation for PCB through-hole integration. The EN11-VSB1AQ15 includes a built-in switch and detent functionality, offering a rotational life of a minimum of 30,000 cycles. Designed for applications requiring precise rotational input, it operates with a 5V supply voltage and PC pin termination. This component is commonly utilized in industrial control, audio equipment, and user interface applications.
Additional Information
Series: EN11RoHS Status: Request inventory verificationManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Right Angle |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 6mm Dia Knurled End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
EN11-HNB0AF20
ROTARY ENCODER MECHANICAL 20PPR

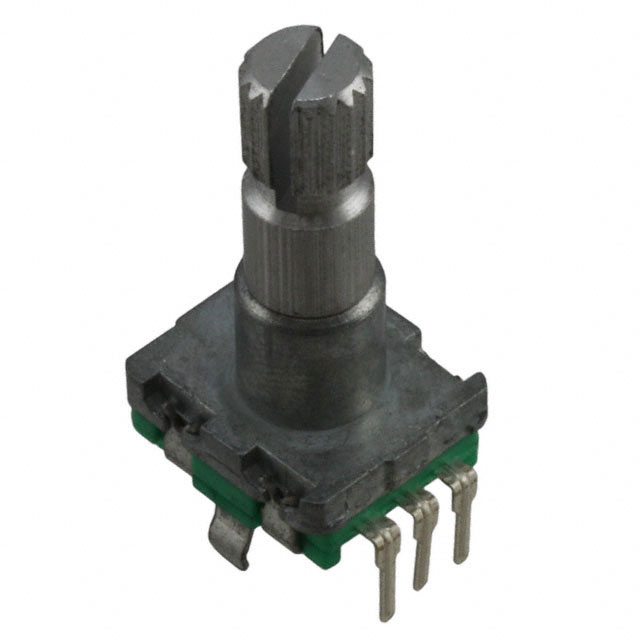

EN11-HNB0BQ20
