EN11-VNB1BQ15
ROTARY ENCODER MECHANICAL 20PPRManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More

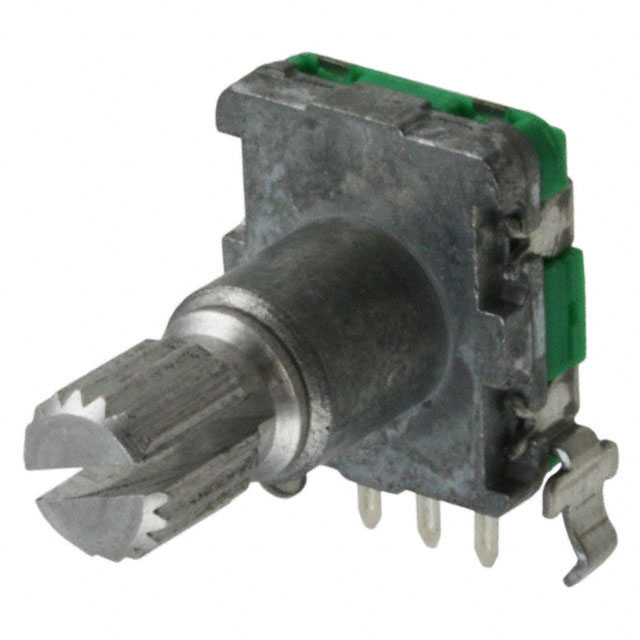

TT Electronics/BI EN11 Series mechanical rotary encoder, part number EN11-VNB1BQ15. This right-angle, through-hole mount component features a 6mm diameter knurled end actuator and provides 20 pulses per revolution (PPR) in quadrature (incremental) output. Designed for applications requiring precise rotational input, it offers a detent mechanism and a rotational life of a minimum of 30,000 cycles. The EN11-VNB1BQ15 is suitable for use in industrial control systems, audio equipment, and consumer electronics where accurate position sensing and user interface control are critical. Termination is via PC pins, and it is supplied in tray packaging.
Additional Information
Series: EN11RoHS Status: Request inventory verificationManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Right Angle |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 6mm Dia Knurled End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
