EN11-VNB1AQ15
ROTARY ENCODER MECHANICAL 20PPRManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More

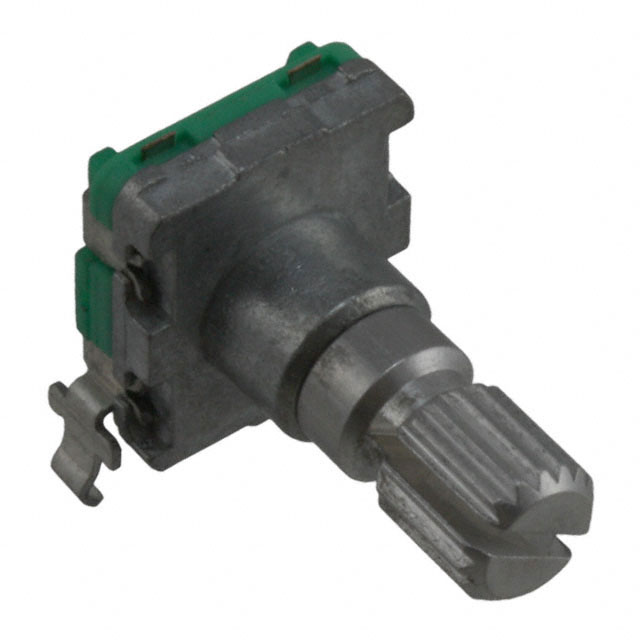

TT Electronics/BI EN11 series rotary encoder, part number EN11-VNB1AQ15. This mechanical, right-angle encoder features 20 pulses per revolution (PPR) and provides quadrature (incremental) output. The EN11-VNB1AQ15 is designed with a detent mechanism and a 6mm diameter knurled end actuator, suitable for PCB through-hole mounting. Its rotational life is rated at a minimum of 30,000 cycles, with PC pin termination. This component is commonly utilized in industrial control systems, audio equipment, and consumer electronics where precise rotational input is required.
Additional Information
Series: EN11RoHS Status: Request inventory verificationManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Right Angle |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 6mm Dia Knurled End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
