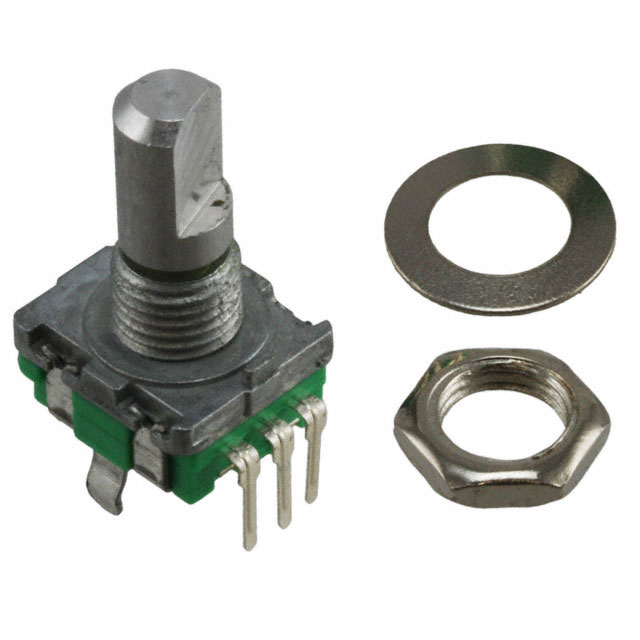

EN11-HSM1AF15
ROTARY ENCODER MECHANICAL 20PPRManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More
TT Electronics/BI EN11 series rotary encoder, part number EN11-HSM1AF15. This mechanical, incremental encoder features 20 pulses per revolution (20 PPR) and provides quadrature outputs. It is designed with a vertical orientation and panel/PCB through-hole mounting. The actuator is a 6mm diameter flatted end. Key features include a built-in switch and detent mechanism, offering a rotational life of at least 30,000 cycles. Termination is via PC pins. This component is utilized in industrial automation, consumer electronics, and automotive control systems.
Additional Information
Series: EN11RoHS Status: Request inventory verificationManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
