EN10VT1224N3HH2
10 MM ENCODERManufacturer: TT Electronics/BI
Categories: Encoders
Quality Control: Learn More
TT Electronics/BI EN10VT1224N3HH2 is an incremental rotary encoder from the EN10 series. This 10mm encoder features a user-selectable orientation and a detent mechanism. It provides 12 pulses per revolution with a Gray code output, functioning as an absolute encoder in this configuration. The encoder is designed for PCB mounting via through-hole termination and has a rotational life expectancy of 100,000 cycles minimum. It requires a 5V supply voltage and is supplied in bulk packaging. Applications for this component include industrial automation, control panels, and instrumentation where precise rotational feedback is required.
Additional Information
Series: EN10RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Gray Code (Absolute) |
| Mounting Type | PCB, Through Hole |
| Orientation | User Selectable |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Encoder Type | Incremental |
| Detent | Yes |
| Pulses per Revolution | 12 |
| Actuator Type | Hole for Shaft |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 100k |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

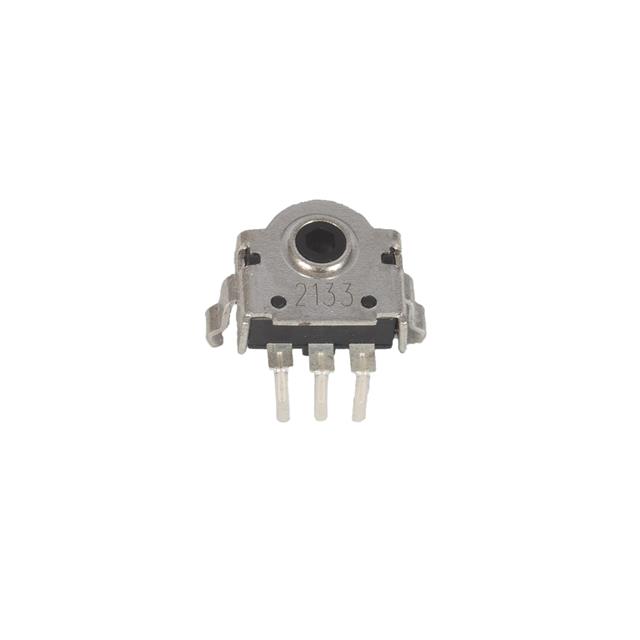

EN10HT1212N5HH3
