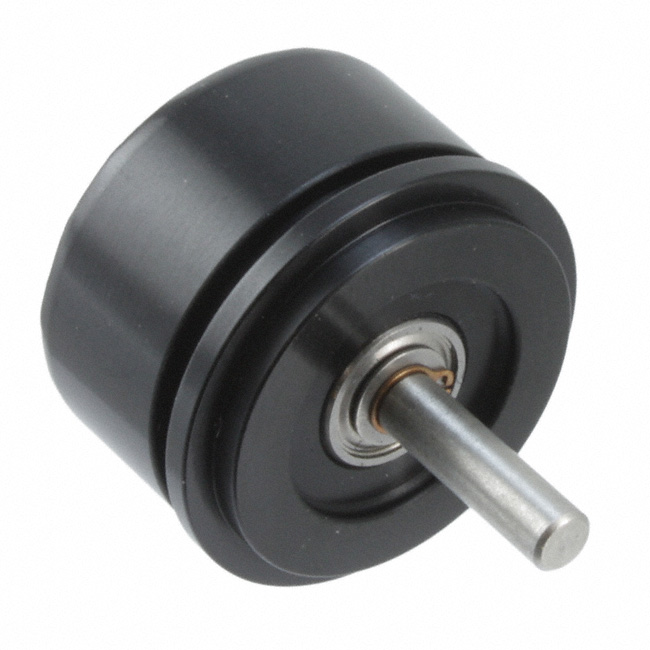

6153V1A180L.5
SENSOR ROTARY 360DEG SLDR TURRETManufacturer: TT Electronics/BI
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
TT Electronics/BI 6150 Series Hall Effect Rotary Position Sensor, part number 6153V1A180L-5, offers continuous 360-degree angular measurement. This component features a round shaft actuator and solder turret termination, facilitating robust connections. Operating within a 4.5V to 5.5V supply voltage range, it provides an analog voltage output signal with clockwise rotation increasing the output. Key specifications include ±0.5% linearity and an operating temperature range of -40°C to 125°C. The panel mount design ensures straightforward integration into systems. This sensor is widely utilized in industrial automation, automotive systems, and consumer electronics for precise angular feedback applications.
Additional Information
Series: 6150RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Round Shaft |
| Mounting Type | Panel Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Solder Turret |
| Voltage - Supply | 4.5V ~ 5.5V |
| Linearity | ±0.5% |
| Linear Range | - |
| Actuator Type | Round Shaft |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Output Signal | Clockwise Increase |
| Programmable | - |
