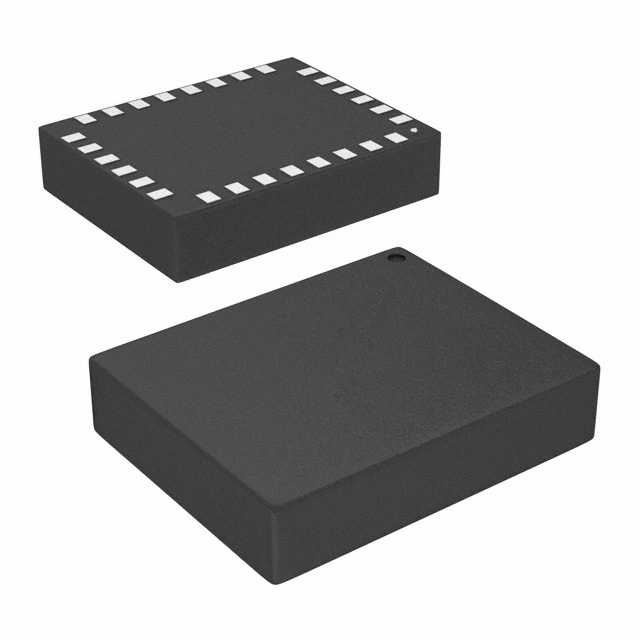

GYPRO2300LD
MEMS GYRO Z-AXIS (YAW) 30-CLCCManufacturer: Tronics
Categories: Gyroscopes
Quality Control: Learn More
The Tronics GYPRO® GYPRO2300LD is a Z-axis (Yaw) MEMS gyroscope designed for high-performance applications. This digital sensor offers a measurement range of ±300 °/s with a bandwidth of 100Hz. The GYPRO2300LD communicates via an SPI interface and is housed in a 30-CLCC package (19.6x11.5mm). Key features include temperature compensation, ensuring stable performance across its operating temperature range of -40°C to 85°C. The device operates with a supply voltage of 4.75V to 5.25V and draws a current of 25 mA. This gyroscope is utilized in demanding sectors such as aerospace, defense, and industrial automation where precise angular rate sensing is critical.
Additional Information
Series: GYPRO®RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 30-CLCC |
| Output Type | SPI |
| Type | Digital |
| Axis | Z (Yaw) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Bandwidth | 100Hz |
| Range °/s | ±300 |
| Grade | - |
| Sensitivity (mV/°/s) | - |
| Sensitivity (LSB/(°/s)) | 10000 |
| Current - Supply | 25 mA |
| Qualification | - |
