TE0808-04-9GI21-AS
STARTER KIT ZYNQ USCALE+ ZU9 FPGManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

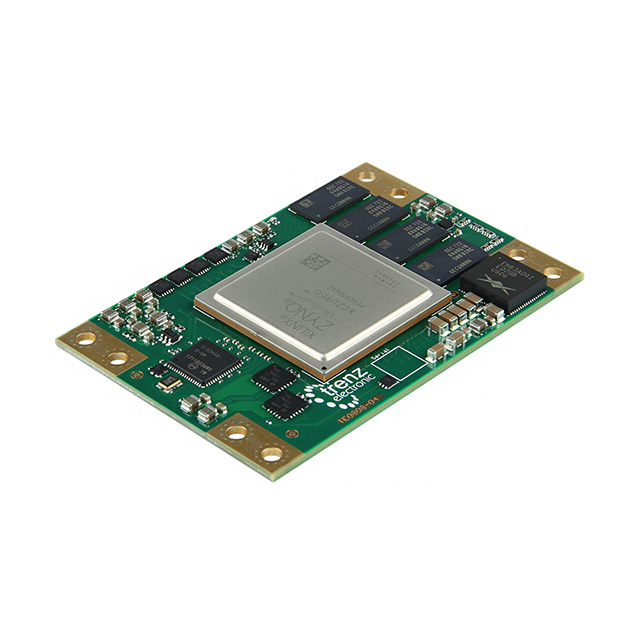

The Trenz Electronic GmbH TE0808-04-9GI21-AS is a TE0808 series embedded module featuring the Xilinx Zynq UltraScale+ ZU9 MPSoC. This high-performance compute platform integrates a quad-core ARM Cortex-A53 application processing unit and a dual-core ARM Cortex-R5 real-time processing unit with a powerful Xilinx programmable logic fabric. The module is equipped with 4GB of DDR4 RAM and 128Mb of QSPI flash memory for configuration and boot. Its compact 52.00mm x 76.00mm form factor with B2B connectors facilitates integration into various system architectures. Operating within an industrial temperature range of -40°C to 85°C, this module is well-suited for demanding applications in aerospace, defense, industrial automation, and high-performance computing.
Additional Information
Series: TE0808RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | B2B |
| Size / Dimension | 2.050"" L x 2.990"" W (52.00mm x 76.00mm) |
| Speed | - |
| RAM Size | 4GB |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | FPGA Core |
| Core Processor | Zynq UltraScale+ ZU9 |
| Co-Processor | - |
| Flash Size | 128Mb |
Request a Quote
Clients Also Buy

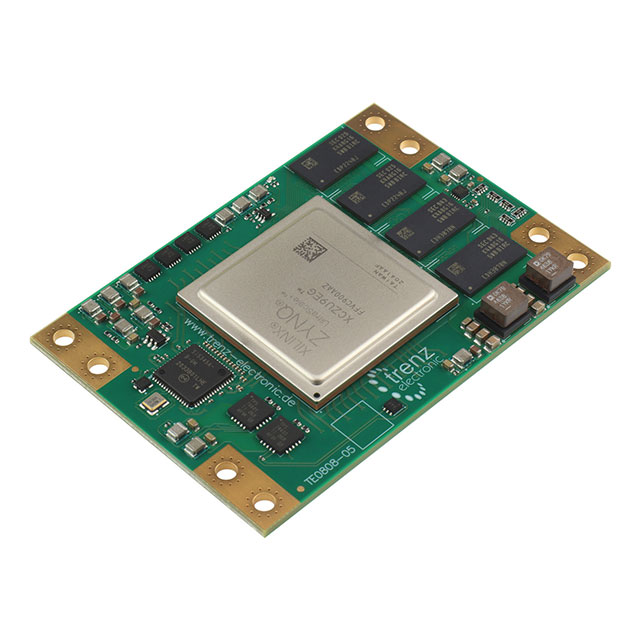

TE0808-05-9BE21-AK
