TE0782-02-A2I33MA
IC MODULE CORTEXManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

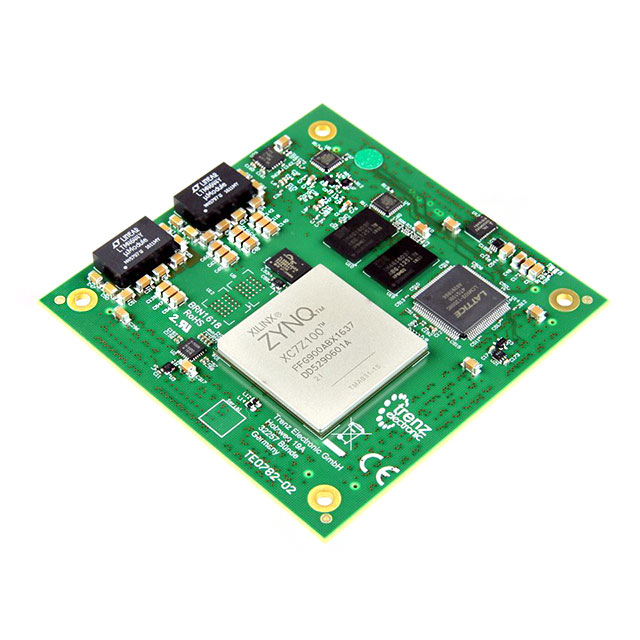

The Trenz Electronic GmbH TE0782-02-A2I33MA is an embedded module featuring an ARM Cortex-A9 core processor, integrated with a Xilinx Zynq-7000 (Z-7100) co-processor. This module offers 1Gb of RAM and 32MB of flash memory, providing substantial resources for complex embedded applications. Designed for industrial environments, it operates across a temperature range of -40°C to 85°C. The TE0782 series module utilizes a board-to-board socket connector for system integration and measures 3.350" x 3.350" (85.00mm x 85.00mm). This component is well-suited for applications in industrial automation, test and measurement, and embedded vision systems.
Additional Information
Series: TE0782RoHS Status: unknownManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Board-to-Board (BTB) Socket |
| Size / Dimension | 3.350"" L x 3.350"" W (85.00mm x 85.00mm) |
| Speed | - |
| RAM Size | 1Gb |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MCU, FPGA |
| Core Processor | ARM Cortex-A9 |
| Co-Processor | Zynq-7000 (Z-7100) |
| Flash Size | 32MB |
